KAD Series Low Profile, Tri-State DIP Switch

KAD Series: KAD10LHGT

Categories: DIP

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

... in stock, available to buy now.

Quantity:

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the KAD10LHGT from our authorized distributors.

DIP, 25mA, 24VDC, SPDT, Through Hole

Quantity:

Electrical rating: Switch: 25mA @ 24VDC; Carry: 100mA @ 50VDC
Through hole or surface mount (SMT) design
Tri-state DIP switch, featuring “high output,” “low output” and “high impedance” or “OFF” functionality at multiple positions.
4, 5, 8, 9, or 10 positions; SPDT each position
Slide type actuator; Extended or recessed; top tape seal option
Straight pin or gull wing termination
0.100″ (2.54mm) Full pitch
Low profile, 3.7mm height off pcb
0.8mm travel in each direction
2,000 cycle life
Gold contact material
-20°C to 85°C operating temperature
Tube or tape and reel packaging

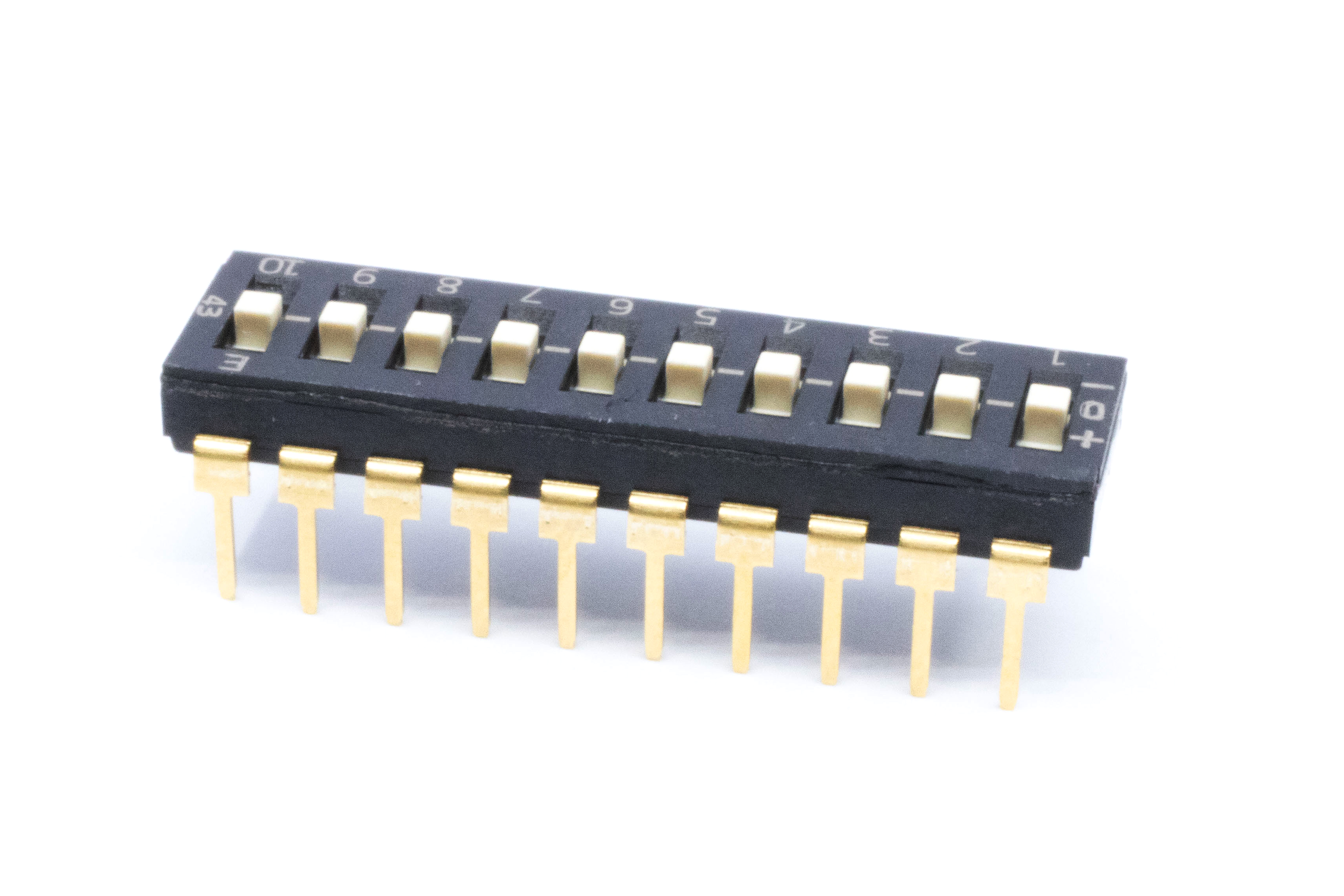

KAD10LHGT

DIP, 25mA, 24VDC, SPDT, Through Hole

Not the product you are looking for? Configure your product

PDF | English

March 12, 2010 | N/A min read

E-Switch's low profile switches allow you to save space on your application.
