JS1400 Series 5-Position, Joystick Navigation Switch

JS1400 Series 5-Position, Joystick Navigation Switch

JS1400 Series: JS1400AFQ

Categories: NAVIGATION

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant

JS1400 Series 5-Position, Joystick Navigation Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

JS1400AFQ

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for JS1400AFQ

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the JS1400AFQ from our authorized distributors.

In-Stock Distributors

NAVIGATION, 50mA, 12VDC, SPST-NO, 4 Way Directional, Center Select, Surface Mount

Powered by oemsecrets

About JS1400 Series

  • 5-position, joystick navigation switch; 4-way directional, center select
  • Surface mount (SMT) design
  • Electrical rating: 50mA 12VDC
  • 7.4mm x 7.7mm
  • 4.0mm, 4.5mm, 5.0mm, or 6.4mm actuator height options
  • Flat gull wing, or inverted gull wing (J lead) termination options
  • Operating force: Center: 360gf ± 60gf; Tilt: 160gf ± 50gf
  • 100,000 cycles mechanical life
  • Travel: 5° +2.5°/-1° tilt; 0.25mm +0.1/-0.2mm center
  • Silver contact material
  • -40°C to 85°C operating temperature
  • Tape and reel packaging

What are Navigation Switches?

JS1400 Series Markets

Telecommunications

Product Specifications

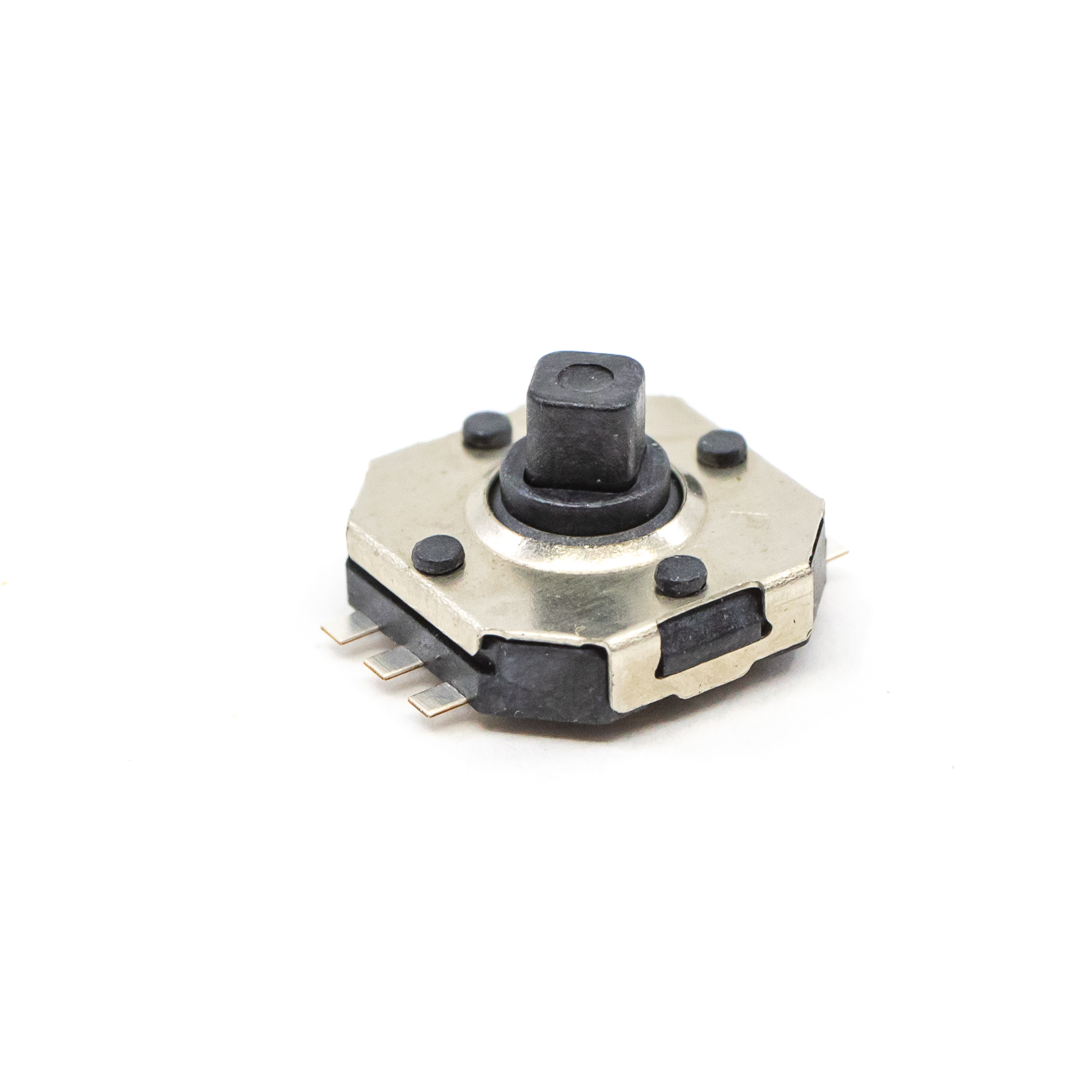

JS1400AFQ

NAVIGATION, 50mA, 12VDC, SPST-NO, 4 Way Directional, Center Select, Surface Mount

  • Series Name JS1400
  • PackagingTape & Reel
  • Current Rating50mA
  • Voltage Rating12VDC
  • CircuitSPST-NO
  • Function4 Way Directional, Center Select
  • Mounting TypeSurface Mount
  • Termination TypeGull Wing
  • Contact MaterialSilver
  • Actuator TypePlunger for Cap
  • Actuator Height4.50mm
  • Operating ForcePush: 360gf, Tilt: 160gf
  • Operating Temperature-40°C to 85°C
  • Nbr of Positions5

Support for JS1400AFQ

Not the product you are looking for? Configure your product

Product Inquiry Request Sample
