Read MoreFS5700 Series Pushbutton Foot Switch

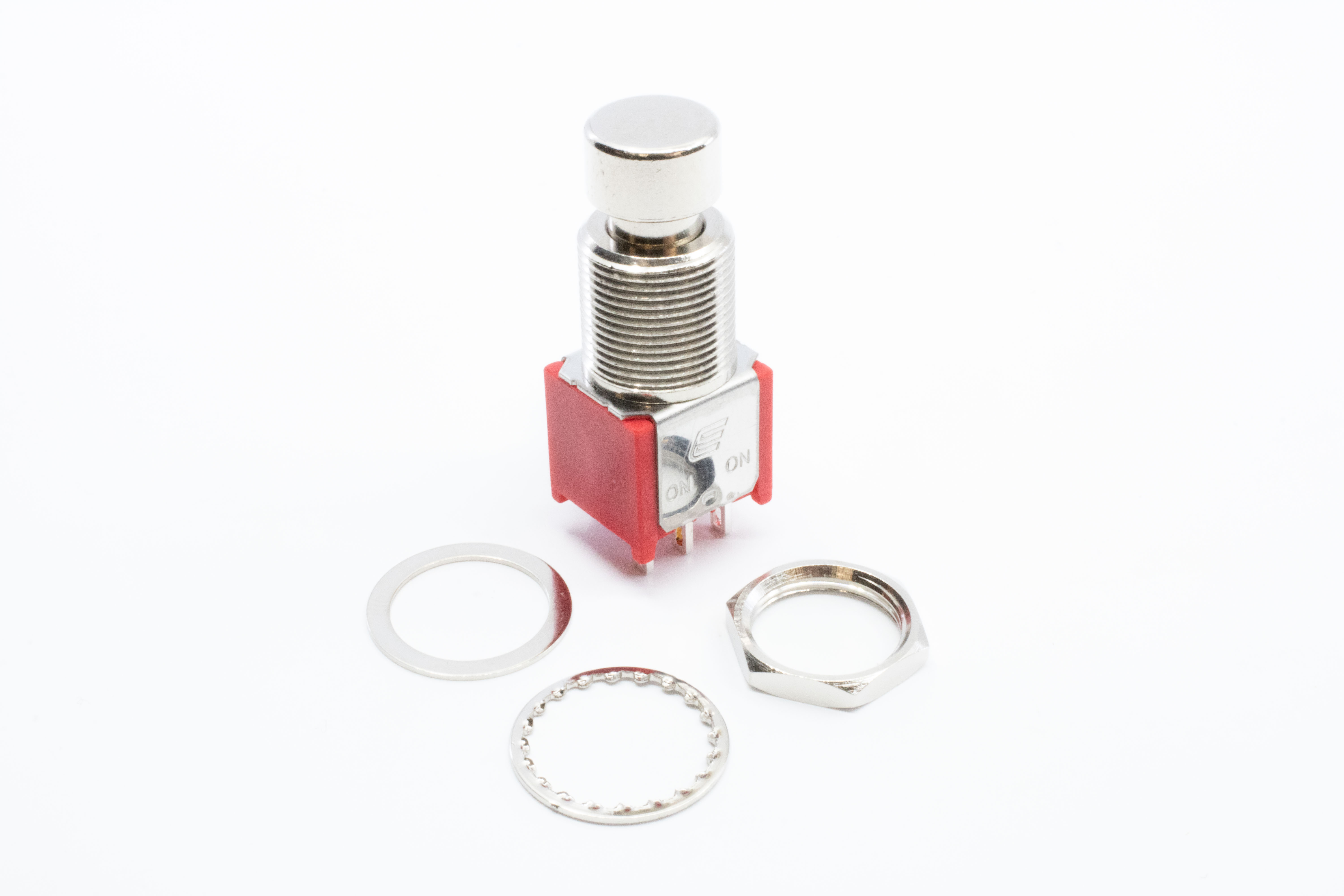

FS5700 Series Pushbutton Foot Switch
Stock Check for FS5700SPLT2B2M1QEH
Not the product you are looking for? Configure your product
PUSHBUTTON, 1A, 9VDC, SPDT, On-On, Panel Mount, Rear
About FS5700 Series
- Foot-actuated pushbutton switch
- SPDT, DPDT or 3PDT circuits
- Momentary or alternate action functions
- High actuation force (1,700gf up to 3,000gf)
- PC board pin termination or solder lug panel mount option
- Travel: 2.7mm to 5mm
- Contact Rating: 1A @ 9VDC
- Electrical Life: 30,000 cycles
- Operating/Storage Temperature: -10°C to 70°C
FS5700 Series Markets
Product Specifications
FS5700SPLT2B2M1QEH
PUSHBUTTON, 1A, 9VDC, SPDT, On-On, Panel Mount, Rear
- Series Name FS5700
- PackagingBulk
- Current Rating1A
- Voltage Rating9VDC
- CircuitSPDT
- FunctionOn-On
- Mounting TypePanel Mount, Rear
- Termination TypeSolder
- Contact MaterialSilver
- Actuator TypeRound, Button
- Actuator ColorSilver
- Illumination Style-
- Illumination Color-
- Panel Cutout DimensionsCircular - 12.2mm Dia.
- Operating Temperature-10°C to 70°C
Support for FS5700SPLT2B2M1QEH
Not the product you are looking for? Configure your product
