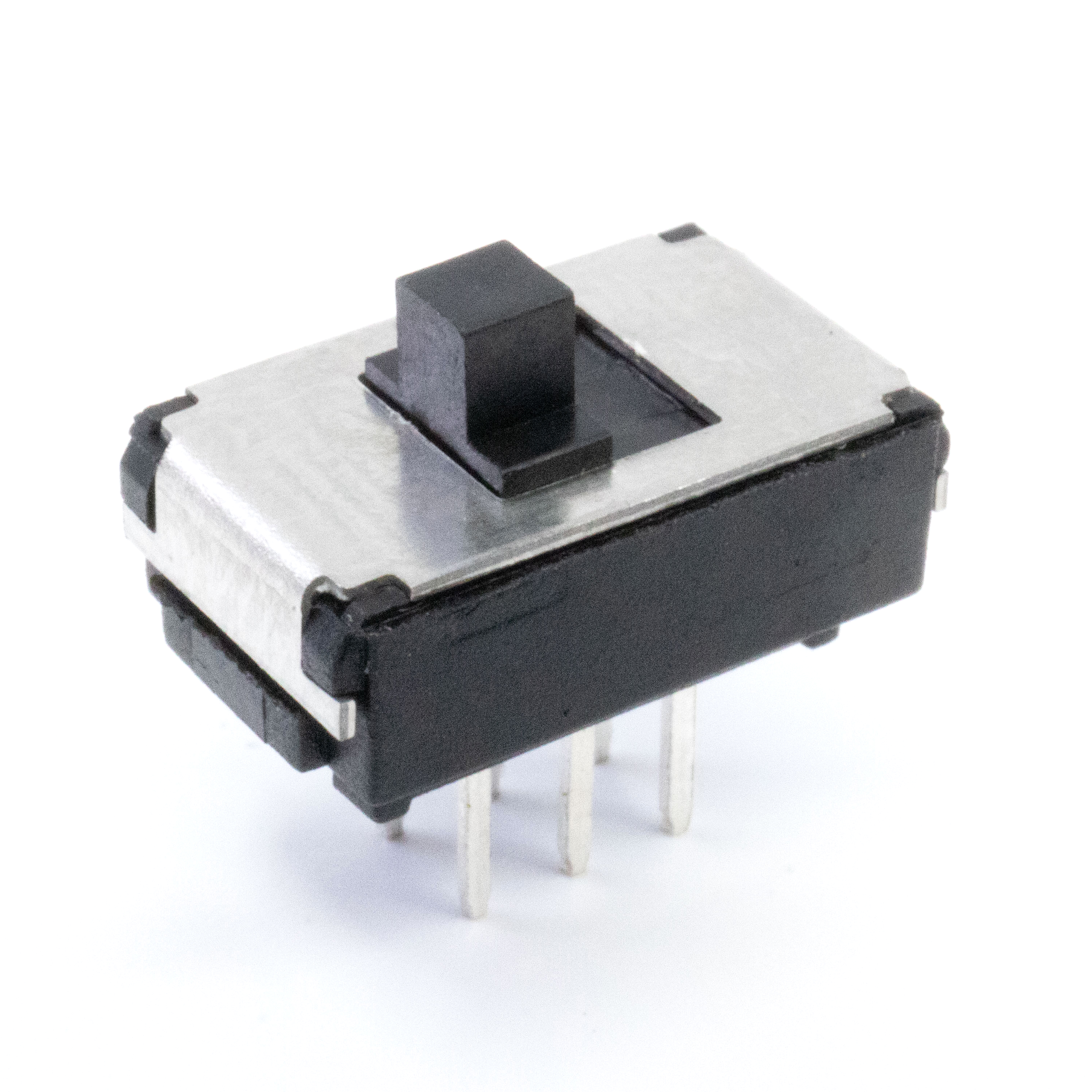

EG Series Subminiature Slide Switch
Stock Check for EG2209
Not the product you are looking for? Configure your product
SLIDE, 100mA, 12VDC, DPDT, On-On, Through Hole, Illuminated
About EG Series
- 200mA @ 30VDC
- Panel mount and PC board mounting designs
- Up to 6 poles; up to 6 actuator positions
- Vertical and horizontal actuation options
- 10,000 cycle life min.
- -20°C to 70°C operating temperature
- Please look at the data sheet to see the full range of slide switches available.
EG Series Markets
Product Specifications
EG2209
SLIDE, 100mA, 12VDC, DPDT, On-On, Through Hole, Illuminated
- Series Name EG
- PackagingBulk
- Current Rating100mA
- Voltage Rating12VDC
- CircuitDPDT
- FunctionOn-On
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height2.00mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Temperature-20°C to 70°C
