DR Series Rotary DIP Switch
DR Series Rotary DIP Switch
Stock Check for DR3MS-16R-TR
Not the product you are looking for? Configure your product
ROTARY DIP, 25mA, 24VDC, Hexadecimal, Surface Mount

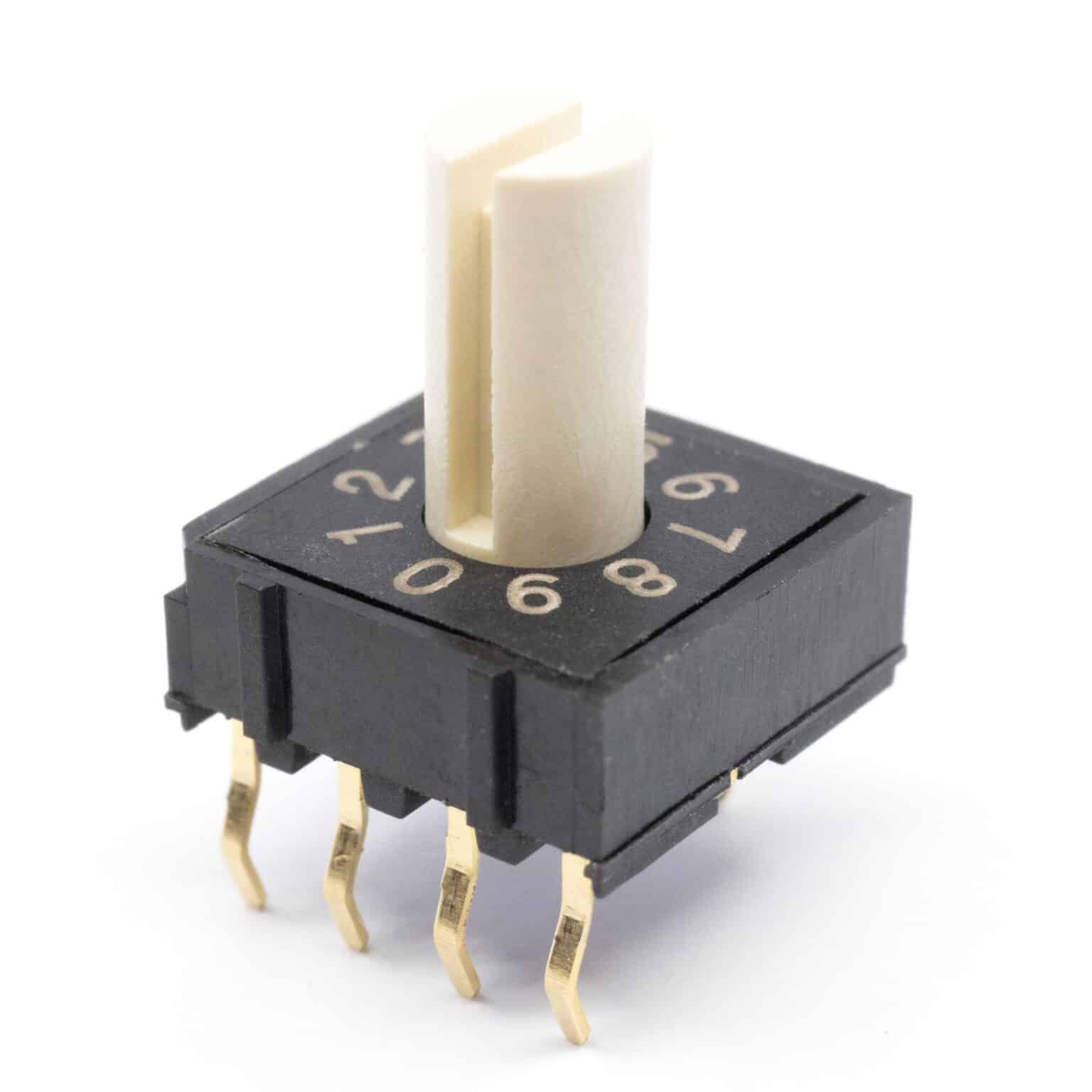

About DR Series
- Electrical ratings:Â Switch:Â 25mA, 24VDC;Â Carry:Â 100mA, 50VDC
- Through hole vertical, right angle, or snap-in; or surface mount (SMT) design
- 2×3, 3×3, or 4×1 pcb terminal layout
- Flush, long or short actuator options
- 10 or 16 positions
- 4.5mm x 9.8mm x 9.9mm package size
- 15,000 steps life expectancy
- Real code
- Tube, tape and reel, or bulk packaging
- -25°C to 80°C operating temperature
DR Series Markets
Product Specifications
DR3MS-16R-TR
ROTARY DIP, 25mA, 24VDC, Hexadecimal, Surface Mount
- Series Name DR
- PackagingTape & Reel
- Current Rating25mA
- Voltage Rating24VDC
- CircuitHexadecimal
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialGold
- Actuator TypeRotary with Shaft
- Actuator Height7.70mm
- Operating Temperature-25°C to 80°C
- Nbr of Positions16
- Pitch0.100" (2.54mm), Full
