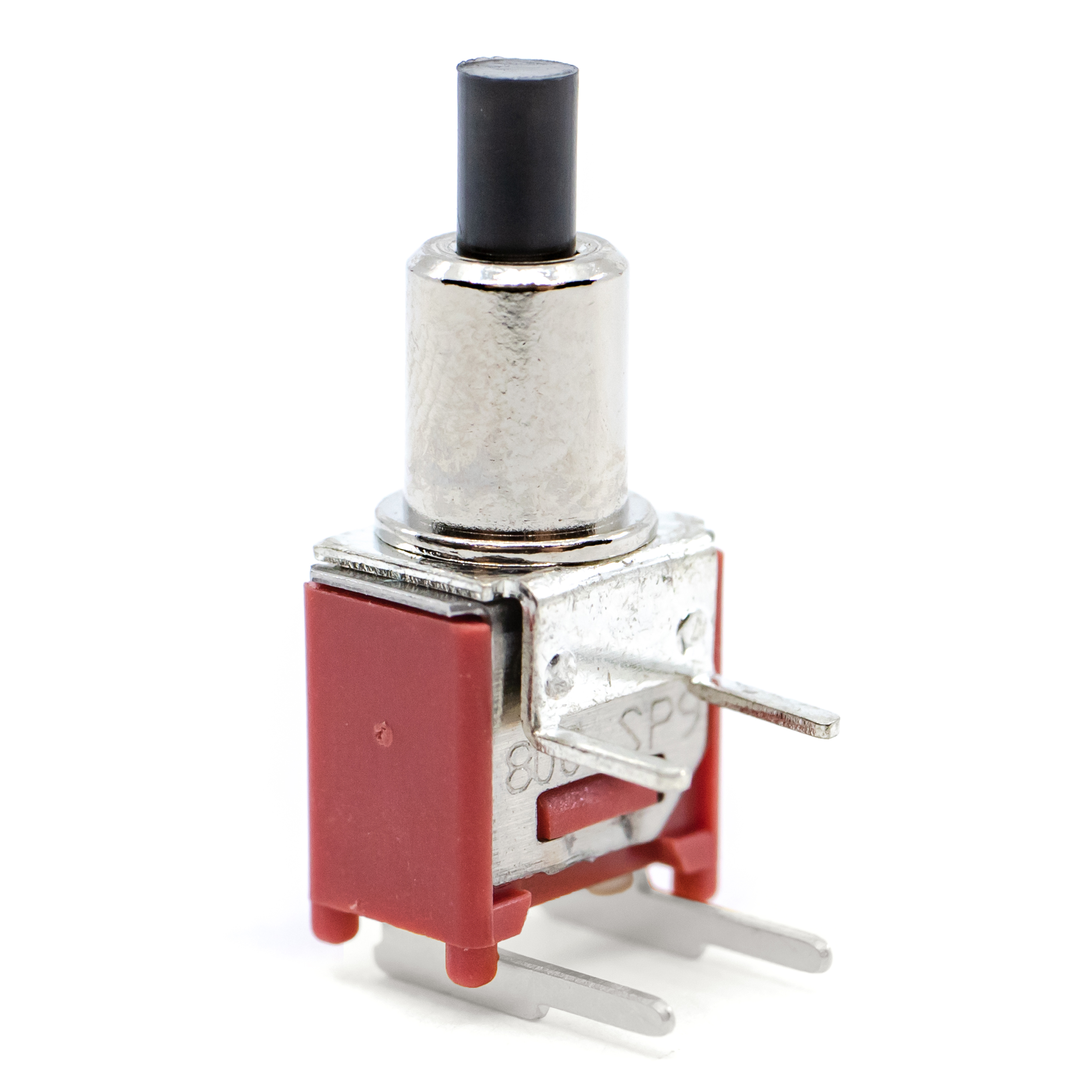

800 Series Subminiature Pushbutton Switch

800 Series Subminiature Pushbutton Switch Wire Leads & Connectors Available

800 Series: 800SP9B7M6QE

Categories: PUSHBUTTON

RoHS Compliant REACH Compliant UL Certified

800 Series Subminiature Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

800SP9B7M6QE

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for 800SP9B7M6QE

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the 800SP9B7M6QE from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 3A, 120VAC/28VDC, SPST, Off-(On), Through Hole, Right Angle, Illuminated

Powered by oemsecrets

About 800 Series

  • Contact Rating: 3A @ 120VAC or 28VDC, 1A @ 250VAC
  • Subminiature design
  • Butt contact design
  • Snap-in panel mount option
  • 1 pole; momentary functions
  • Variety of bushing options
  • Termination options: right angle PCB pin, solder lug, right angle PCB pin with bracket, vertical PCB pin and vertical PCB pin with bracket
  • Travel: 0.9mm
  • Operating Force: 200gf
  • Operating Temperature: -40°C to 85°C

E-Switch Featured Switch: 800 Series Subminiature Pushbutton Switch

800 Series Markets

Telecommunications

Product Specifications

800SP9B7M6QE

PUSHBUTTON, 3A, 120VAC/28VDC, SPST, Off-(On), Through Hole, Right Angle, Illuminated

  • Series Name 800
  • PackagingBulk
  • Current Rating3A
  • Voltage Rating120VAC/28VDC
  • CircuitSPST
  • FunctionOff-(On)
  • Mounting TypeThrough Hole, Right Angle
  • Termination TypePC Pin
  • Contact MaterialSilver
  • Actuator TypeRound, Plunger
  • Actuator ColorBlack
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Operating Temperature-40°C to 85°C
