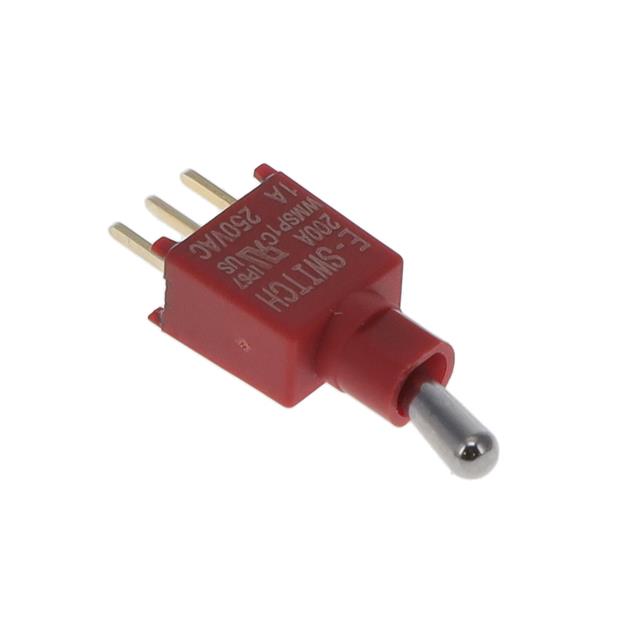

200A Series Sealed, Subminiature Toggle Switch
Stock Check for 200AWMSP1T2A1M2QE
Not the product you are looking for? Configure your product
TOGGLE, 3A, 120VAC/28VDC, SPDT, On-On, Through Hole
About 200A Series
- IP67
- Electrical Ratings:
- Silver – 3A, 120VAC or 28VDC;Â 1A, 250VAC; UL, cUL
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT, momentary or latching functions
- Through hole, Through hole right angle, Through hole right angle vertical, snap in bracket, mounting/termination options
- Silver or Gold contact material
- Epoxy sealed terminals
- -40°C to 85°C operating temperature
200A Series Markets
Product Specifications
200AWMSP1T2A1M2QE
TOGGLE, 3A, 120VAC/28VDC, SPDT, On-On, Through Hole
- Series Name 200A
- PackagingBulk
- Current Rating3A
- Voltage Rating120VAC/28VDC
- CircuitSPDT
- FunctionOn-On
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeStandard Round
- Actuator Height6.10mm
- Ingress ProtectionIP67
- Operating Temperature-40°C to 85°C
- BushingUnthreaded
