200 Series Subminiature Toggle Switch
Stock Check for 200MSP1T2B2M7RE
Not the product you are looking for? Configure your product
TOGGLE, 0.4VA, 20VAC/VDC, SPDT, On-On, Through Hole, Right Angle, Vertical
About 200 Series
- Electrical Ratings:
- Silver – 3A, 120VAC or 28VDC;Â 1A, 250VAC; UL, cUL
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPST, SPDT, DPDT, momentary and latching functions
- Multiple types of Panel Mount and Through Hole mounting options including right angle, vertical, and with bracket
- Five actuator height options
- Multiple threaded or non-threaded bushing options
- Silver or Gold contact material
- Epoxy sealed terminals
- -30°C to 85°C operating temperature
200 Series Markets
Product Specifications

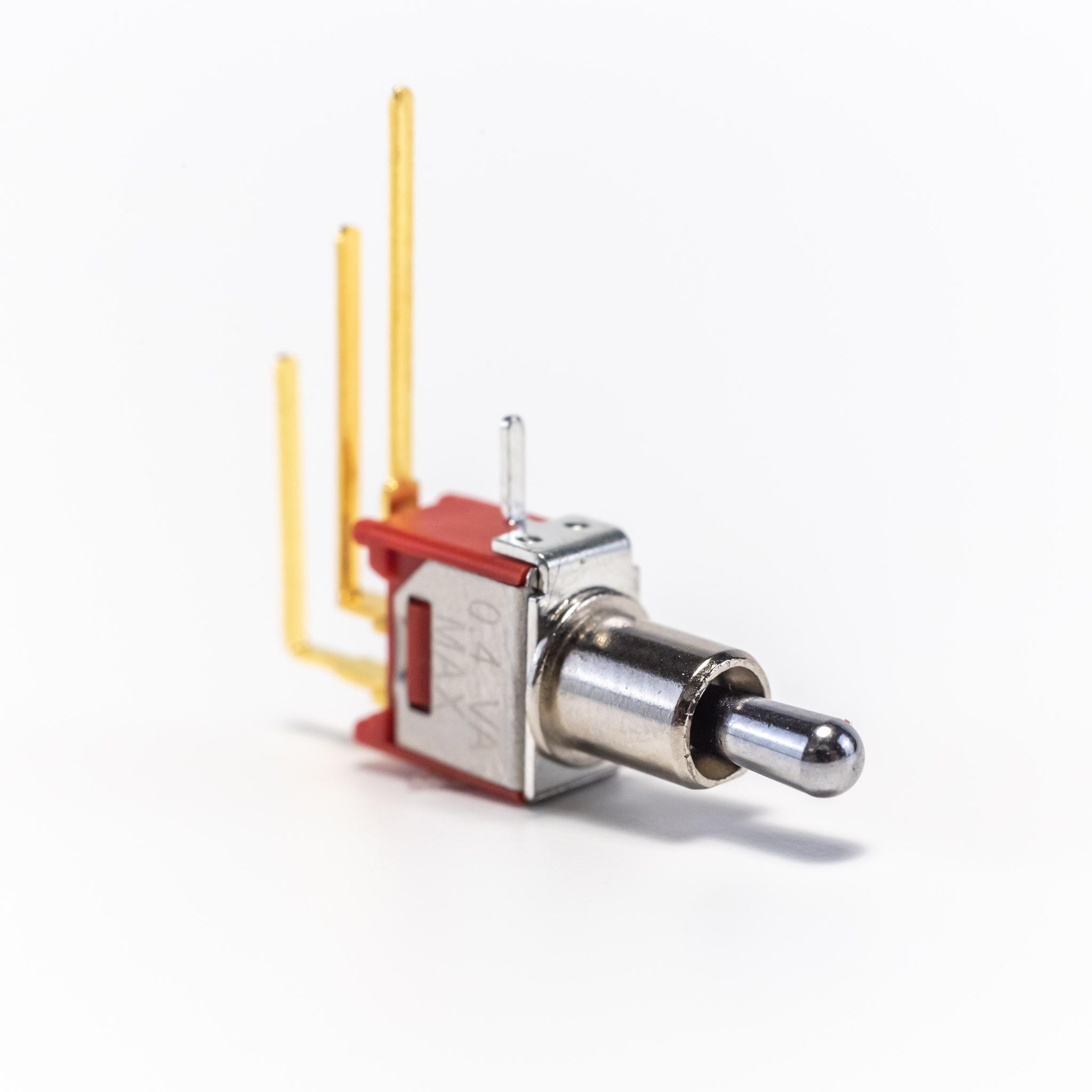

200MSP1T2B2M7RE
TOGGLE, 0.4VA, 20VAC/VDC, SPDT, On-On, Through Hole, Right Angle, Vertical
- Series Name 200
- PackagingBulk
- Current Rating0.4VA
- Voltage Rating20VAC/VDC
- CircuitSPDT
- FunctionOn-On
- Mounting TypeThrough Hole, Right Angle, Vertical
- Termination TypePC Pin
- Contact MaterialGold
- Actuator TypeStandard Round
- Actuator Height5.33mm
- Operating Temperature-40°C to 85°C
- BushingUnthreaded
Support for 200MSP1T2B2M7RE
Not the product you are looking for? Configure your product
