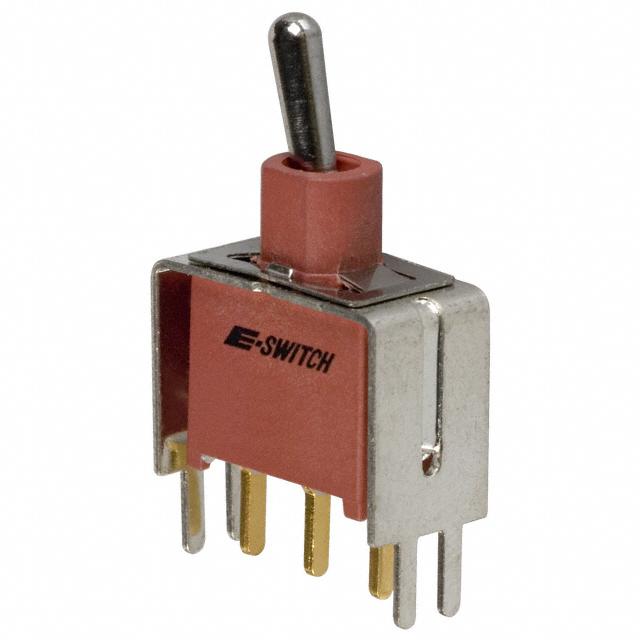

100A Series Sealed, Miniature Toggle Switch
Stock Check for 100AWSP1T2B4VS2RE
Not the product you are looking for? Configure your product
TOGGLE, 0.4VA, 20VAC/VDC, SPDT, On-On, Through Hole
About 100A Series
- IP67
- Electrical Ratings:
- Silver – 5A, 120VAC or 28VDC;Â 2A, 250VAC; UL, cUL
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT, momentary or latching functions
- Multiple types of Panel Mount and Through Hole mounting options including right angle, vertical, and with bracket
- Actuator height options
- Threaded or non-threaded bushing options
- Silver or Gold contact material
- Epoxy sealed terminals
- -40°C to 85°C operating temperature
100A Series Markets
Product Specifications
100AWSP1T2B4VS2RE
TOGGLE, 0.4VA, 20VAC/VDC, SPDT, On-On, Through Hole
- Series Name 100A
- PackagingBulk
- Current Rating0.4VA
- Voltage Rating20VAC/VDC
- CircuitSPDT
- FunctionOn-On
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialGold
- Actuator TypeStandard Round
- Actuator Height7.62mm
- Ingress ProtectionIP67
- Operating Temperature-40°C to 85°C
- BushingUnthreaded
Support for 100AWSP1T2B4VS2RE
Not the product you are looking for? Configure your product
