100 Series Miniature Toggle Switch
Stock Check for 100SP3T1B1VS2REH
Not the product you are looking for? Configure your product
TOGGLE, 0.4VA, 20VAC/VDC, SPDT, On-Off-On, Panel Mount
About 100 Series
- Electrical Ratings:
- Silver – 5A, 120VAC or 28VDC;Â 2A, 250VAC; UL, cUL
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT, 3PDT, 4PDT, momentary or latching functions
- Seventeen types of Panel Mount and Through Hole mounting options
- Eleven actuator options
- Fifteen bushing options
- Silver or Gold contact material
- Epoxy sealed terminals
- -40°C to 85°C operating temperature
100 Series Markets
Product Specifications

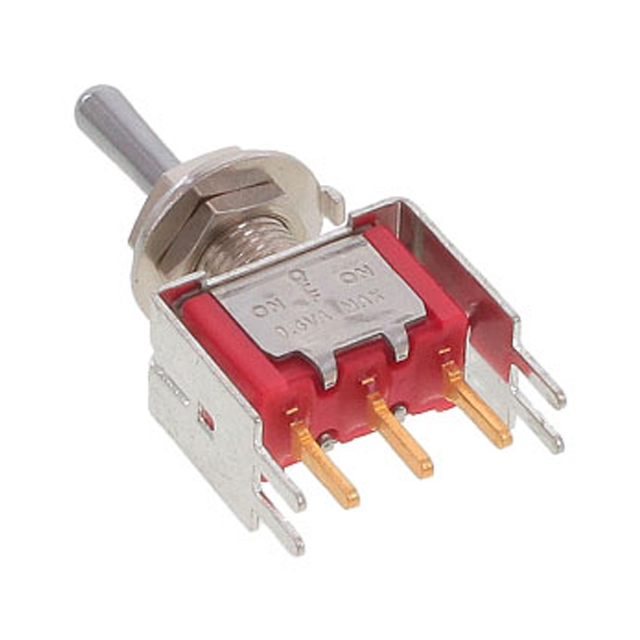

100SP3T1B1VS2REH
TOGGLE, 0.4VA, 20VAC/VDC, SPDT, On-Off-On, Panel Mount
- Series Name 100
- PackagingBulk
- Current Rating0.4VA
- Voltage Rating20VAC/VDC
- CircuitSPDT
- FunctionOn-Off-On
- Mounting TypePanel Mount
- Termination TypePC Pin
- Contact MaterialGold
- Actuator TypeStandard Round
- Actuator Height10.41mm
- Panel Cutout DimensionsCircular - 6.35mm Dia.
- Operating Temperature-40°C to 85°C
- Bushing1/4-40
