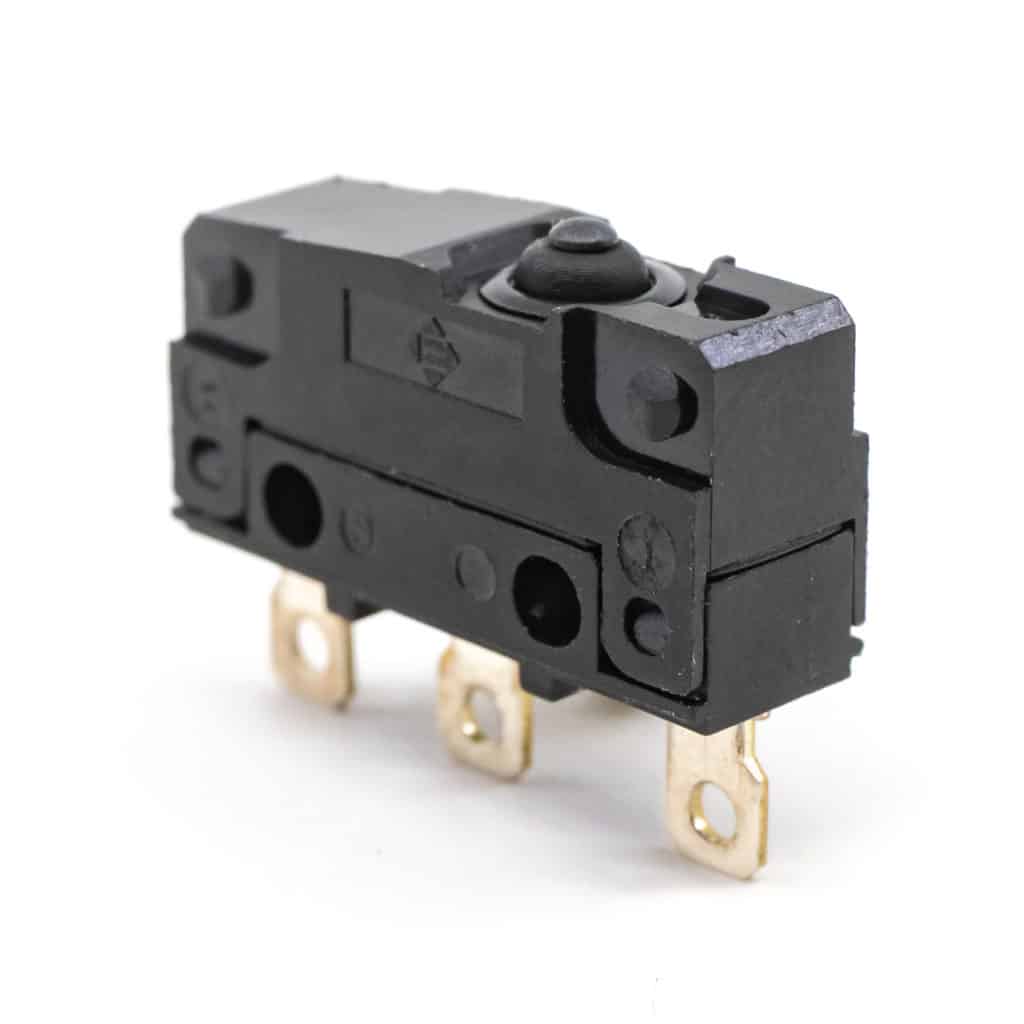

WS2 Series Sealed Snap Action Switch
WS2 Series Sealed Snap Action Switch
- IP67
- Electrical ratings:
- 2A 30VDC or 250VAC; UL, cUL
- SPDT circuit; latching function
- Panel mount or through hole mounting design
- Solder lug, quick connect, or PCB pin termination options
- Pin plunger actuator
- 183gf max. operating force
- 500,000 cycles min. mechanical life
- -25 to 85°C operating temperature
- Silver contact material
WS2 Series Sealed Snap Action Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 2A @ 30VDC; 2A @ 250VAC
- CONTACT ARRANGEMENT: SPDT
- CONTACT RESISTANCE: 50mΩ MAX. (Initial)
- INSULATION RESISTANCE: 100MΩ MIN. @ 500VDC
- DIELECTRIC STRENGTH: 500VAC for 1 minute
- ELECTRICAL LIFE: 100,000 Cycles MIN.
- MECHANICAL LIFE: 500,000 Cycles MIN.
- OPERATING TEMPERATURE: -25 to 85°C
- DUST/MOISTURE PROTECTION: IP67
- OPERATING FORCE: 183gf MAX.
- AGENCY APPROVALS: UL, cUL
