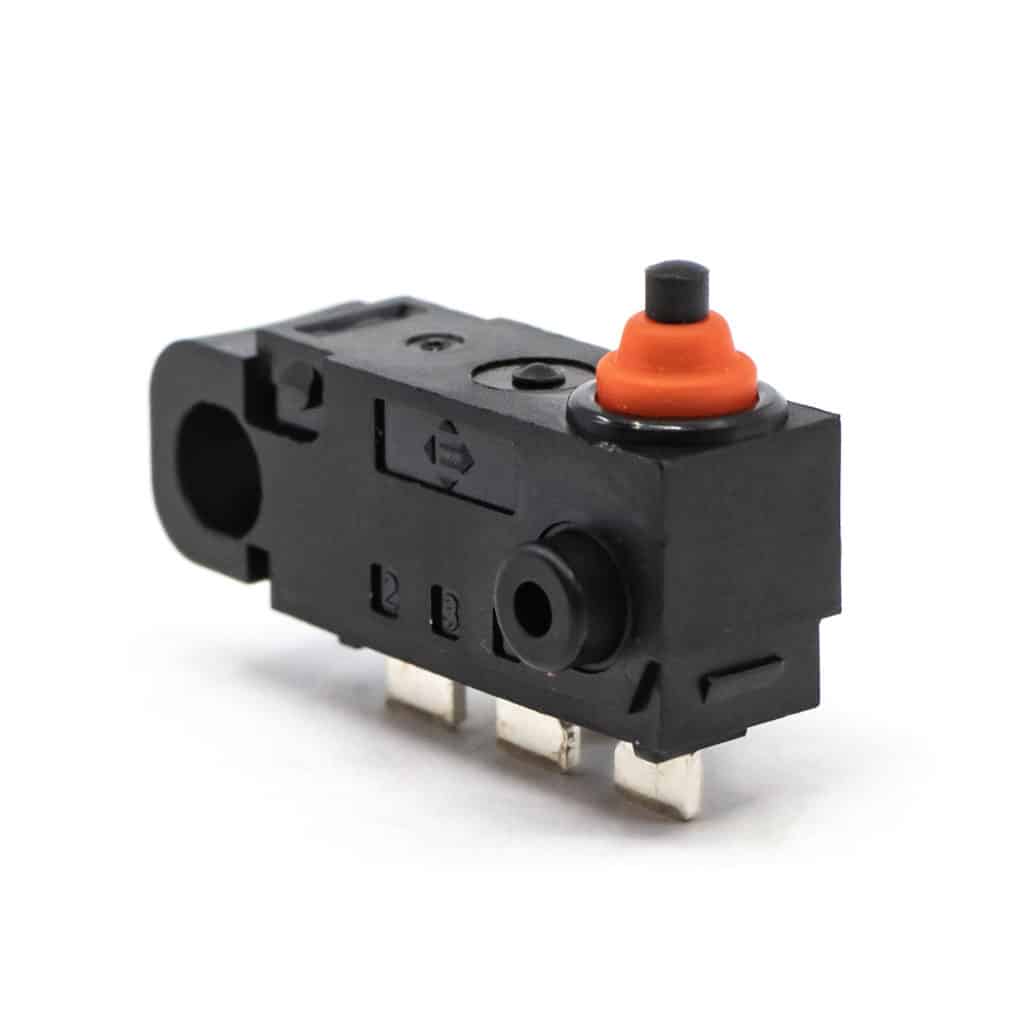

WS1 Series Sealed, Snap Action Switch

WS1 Series Sealed, Snap Action Switch

The WS1 Series sealed snap action switch is UL certified, and has an ingress protection rating of IP67, making it totally protected from dust and the effects of temporary immersion up to one meter for 30 minutes. This sealed switch operates in temperatures ranging from -40 to 85°C. The WS1 Series sealed snap action switches have SPDT circuits, with a long mechanical life of at least 500,000 cycles. It comes in either 0.1A or 3A current rating, and is compatible with both DC and AC. It has two different termination options of solder lug or wire leads. Applications for this snap action switch include, but are not limited to:

  • HVAC equipment,
  • Floorcare appliances
  • Medical equipment
  • White goods
  • Vending machines
  • Electrical houseware products

FEATURES

  • IP67 rated for dust and moisture protection
  • UL Certified
  • Multiple current rating options
  • Solder lug or wire leads termination options

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Ws1 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 01: 0.1A @ 48VDC or 0.1A @ 125/250VAC; 3: 3A @ 12VDC or 3A @ 125/250VAC CONTACT ARRANGEMENT: SPDT CONTACT RESISTANCE: 150mΩ Max. (Initial) INSULATION RESISTANCE: 100MΩ Max. @ 500VDC DIELECTRIC STRENGTH: 500VAC for 1 minute ELECTRICAL LIFE: 100,000 Cycles Min. MECHANICAL LIFE: 500,000 Cycles Min. OPERATING TEMPERATURE: -40 to 85°C DUST/MOISTURE PROTECTION: IP67 OPERATING FORCE: 130gf Max. AGENCY APPROVALS: cURus
