WS Series Sealed Snap Action Switch
WS Series Sealed Snap Action Switch
- IP67
- Electrical ratings:
- 0.5A 42VDC, 1A 24VDC, 2A 12VDC, 3A 125/250VAC; UL, cUL
- SPDT circuit; momentary function
- Chassis mount or through hole mounting design
- Solder lug, PCB pin, or wire leads termination
- Pin plunger, lever, or simulated roller actuator
- 70gf or 50gf operating force
- 1,000,000 cycles mechanical life
- -25 to 85°C operating temperature
- Silver contact material
WS Series Sealed Snap Action Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:

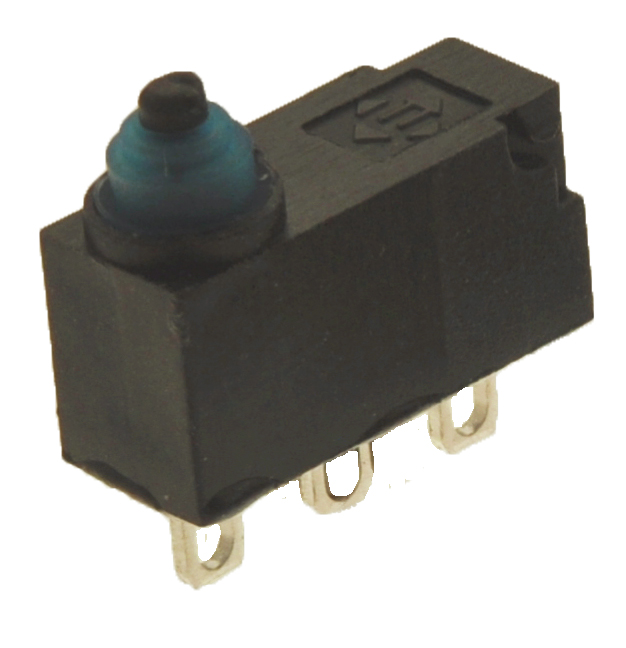

* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 0.5A @ 42VDC; 1A @ 24VDC; 2A @ 12VDC; 3A @ 125/250VAC
- ELECTRICAL LIFE: 10,000 Cycles
- MECHANICAL LIFE: 1,000,000 Cycles
- CONTACT RESISTANCE: 100mΩ Max. Initial
- INSULATION RESISTANCE: 100MΩ Min. @ 500VDC
- DIELECTRIC STRENGTH: 600VAC
- OPERATING/STORAGE TEMPERATURE: -25 to 85°C
- DUST/MOISTURE PROTECTION: IP67
- CONTACT ARRANGEMENT: SPDT
- ACTUATION FORCE: See Table on Data Sheet
- AGENCY APPROVALS: UL, cUL
