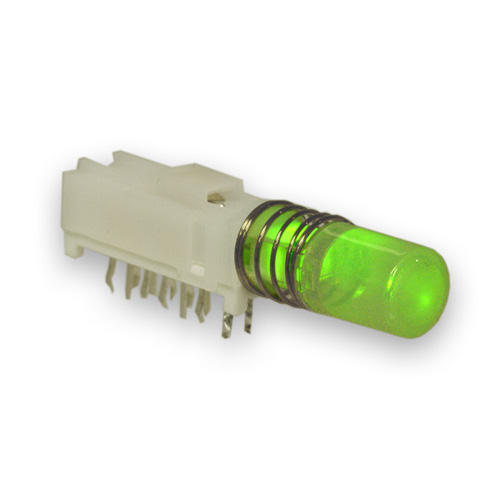

WBL Series Illuminated, Right Angle Pushbutton Switch
WBL Series Illuminated, Right Angle Pushbutton Switch
- DPDT or 4PDT, maintained (latching) or momentary pushbuttons
- Multiple LED illumination colors, including bi-color LEDs
- Right angle, through-hole PCB mounting design
- 300mA, 30VDC electrical rating
- Optional transparent cap
- Travel: 3.3mm full, maintained latches at 2.5mm
- Operating Force: 200 grams
- Operating/Storage Temperature: -20°C to +70°C
WBL Series Illuminated, Right Angle Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 300mA @ 30VDC
- MECHANICAL LIFE: 10,000 Cycles
- CONTACT RESISTANCE: 20mΩ Max.
- INSULATION RESISTANCE: 100MΩ Min. @ 500VDC
- DIELECTRIC STRENGTH: 500VAC for 1 Minute
- OPERATING FORCE: 200gf ± 100gf
- TRAVEL: Full: 3.30 ± 0.3mm; To Lock: 2.50 ± 0.3mm
- OPERATING/STORAGE TEMPERATURE: -20°C to 70°C
