WB2 Series Sealed, High Current Rocker Switch

WB2 Series Sealed, High Current Rocker Switch

The WB2 Series high current power rocker switch has a panel cutout of 22mm x 30mm and an internal dust and water protection seal rated IP55 for ingress protection. These heavy duty, power rocker switches are meant for 2-pole maintained and momentary functions. The WB2 Series high current rocker switch has an electrical rating of 20A,125/250VAC T65/T85 with [cURus] approval. This power rocker switch mounts to a panel cutout sized 22mm x 30mm and comes with a curved actuator. Applications for this high current, heavy duty rocker switch include:

  • Commercial appliances
  • Industrial controls
  • Floor care appliances
  • Instrumentation
  • Medical/dental
  • Electrical housewares

FEATURES

  • Up to 20A, 125VAC, 2HP electrical rating with cURus certification
  • IP55 rated for dust and moisture protection
  • 2 pole; maintained (latching) and momentary functions

WB2 Series Sealed, High Current Rocker Switch

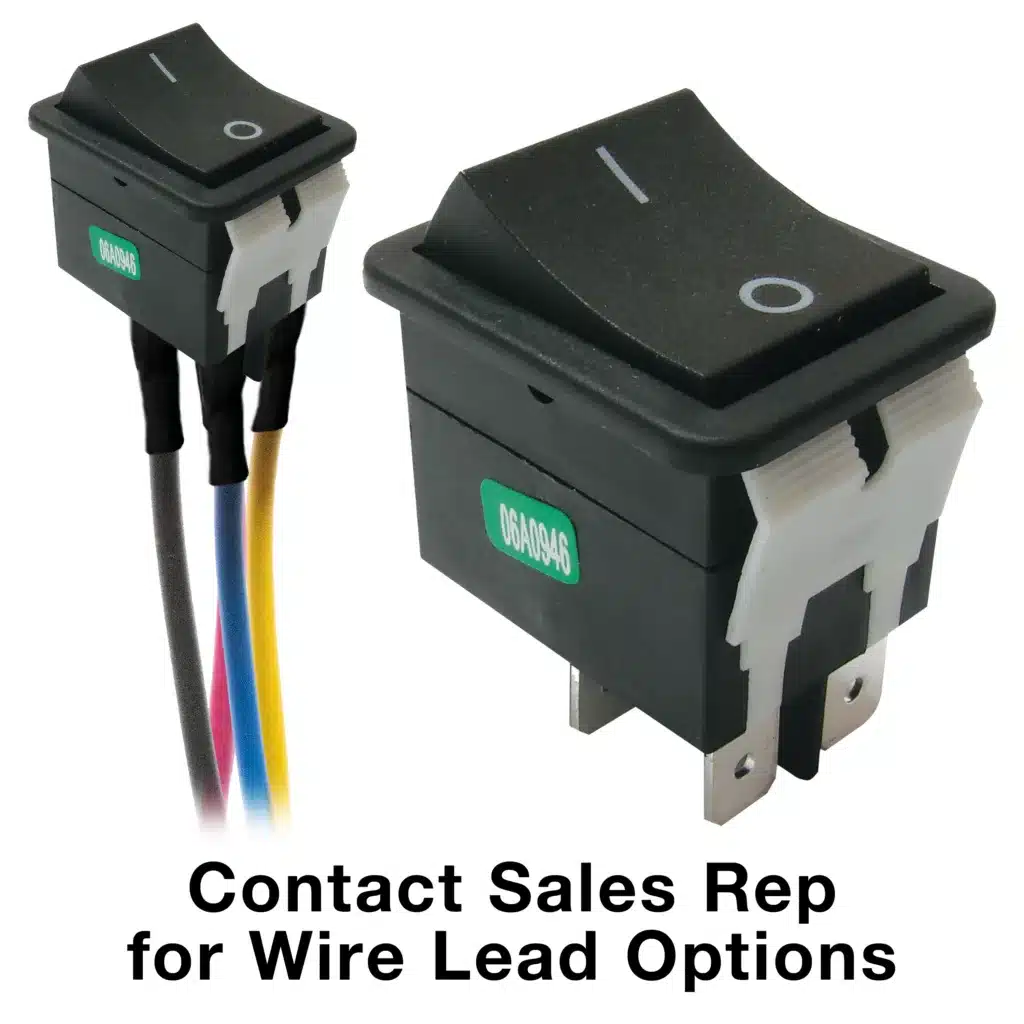

decoration Wb2 Wire

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Wb2 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

WB242D1121
WB246D1929
WB24GE1121

Detail Specifications

ELECTRICAL RATING: Maintained Switches: 20A @ 125VAC [cULus]; 20A @ 250VAC [cULus]; 2HP @ 125/250VAC [cULus]; 18(12)A @ 250V~ 5E4 T85 [European]; Momentary Switches: 20A @ 125VAC T85 [cULus]; 20A @ 250VAC T85 [cULus]; 1.5HP @ 125/250VAC [cULus]; 18(10)A @ 250V~ 5E4 T85 [European] OPERATING/STORAGE TEMPERATURE: -20°C to 65°C Min. ELECTRICAL LIFE: 6,000 cycles CONTACT RESISTANCE: 50mΩ Max. INSULATION RESISTANCE: 500MΩ Min. @ 500VDC DIELECTRIC STRENGTH: 1,500VAC for 1 Minute DUST/MOISTURE PROTECTION: IP55 Standard / MATERIALS / BODY: Polyamide 6/6 ACTUATOR: Polyamide 6/6 MOUNTING EARS: Polyamide 6/6 RUBBER SEAL: Ethylene Propylene CONTACTS: Silver Alloy TERMINALS: Silver Plated Brass
