ULV4 Series UL Certified, Long Life Anti-vandal Switch

ULV4 Series UL Certified, Long Life Anti-vandal Switch

The ULV4 Series anti-vandal switches are rated to handle 3A of 250VAC and are UL certified for safety standards. The ULV Series is IP67 rated for moisture and dust protection, offers SPDT or DPDT functionality, an operating life of up to a million life cycles (momentary) and 500,000 cycles (latching), and requires a 19mm panel cutout size. Switches are available as non-illuminated or illuminated dot, ring or power symbol in multiple LED color options and voltage options. A special feature of the ULV4 Series is the availability of etched icons on the actuator with added illumination. A total of 43 commonly used icons are standard, such as Bluetooth, WiFi, STOP, START, and more. Standard graphic icons eliminate costly tooling. The ULV4 Series comes with several termination options: solder lug, prewired (300mm long), molded boot with wire leads (500mm long) and a detachable socket with wire leads (500mm long). The ULV4 Series illuminated anti-vandal switches are suitable for:

  • Industrial controls
  • Kiosks
  • Commercial appliances
  • Medical equipment
  • Security devices
  • Electrical housewares
   Terminal Option W     Terminal Option M      Terminal Option P

FEATURES

  • 19mm panel cutout size
  • Dot, ring, or power symbol illumination
  • IP67 rated for dust and moisture protection; UL certified
  • Long mechanical life of up to 1 million cycles
  • Maintained (latching) or momentary pushbuttons
  • Three wire lead options available
  • 43 different custom graphic options

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

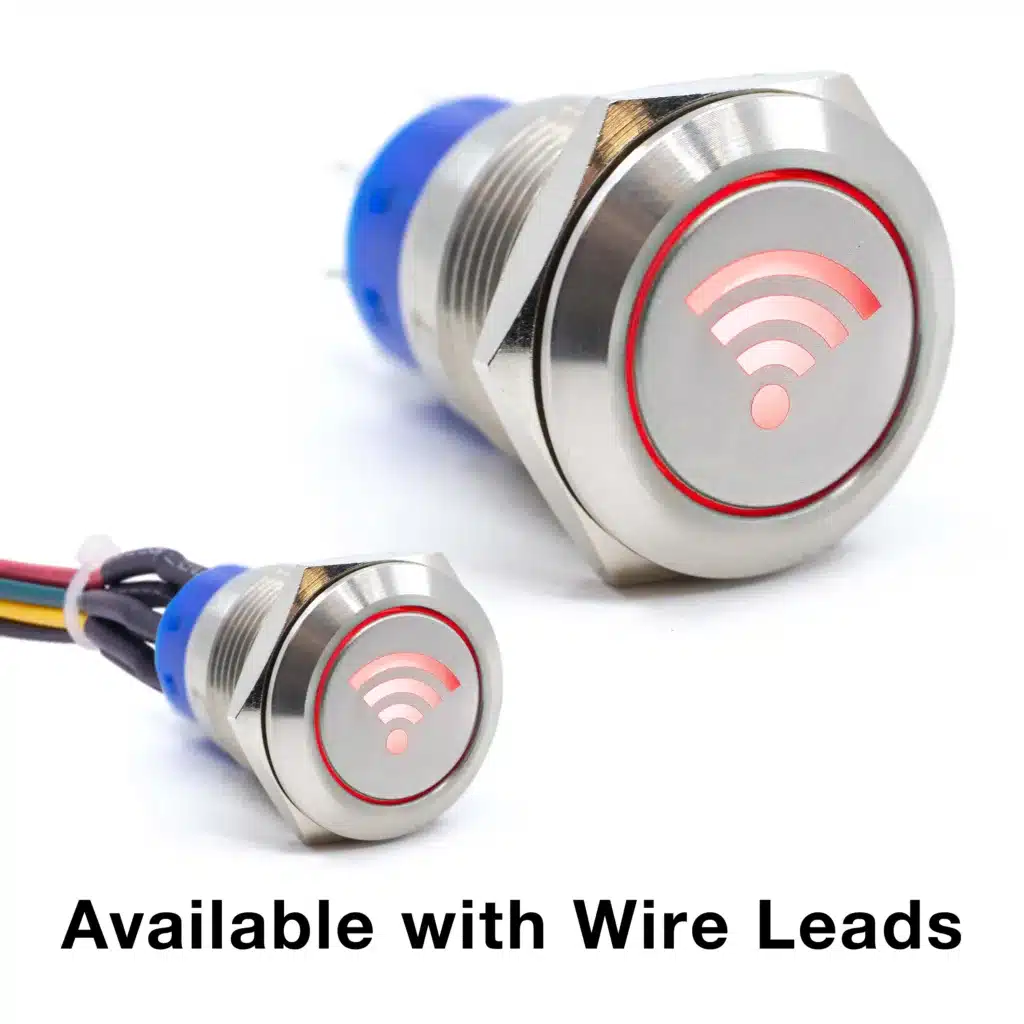

Ulv4 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

  • ELECTRICAL RATING: 3A @ 125/250VAC
  • MECHANICAL LIFE: 1,000,000 cycles (momentary); 500,000 cycles (latching)
  • ELECTRICAL LIFE: 50,000 Cycles
  • CONTACT RESISTANCE: 50mΩ
  • INSULATION RESISTANCE: 1000 MΩ @ 500VDC
  • DIELECTRIC STRENGTH: 2,000VAC
  • OPERATING/STORAGE TEMPERATURE: -20°C to 55°C
  • TRAVEL: 3.2mm
  • DUST/MOISTURE PROTECTION: IP67
  • CONTACT ARRANGEMENT: SPDT or DPDT
  • ACTUATION FORCE: Single Pole: 2.5N; Double Pole: 3.5N
  • PANEL THICKNESS: 1-10mm
  • HEX NUT TORQUE: 5-14Nm
  • MECHANICAL IMPACT PROTECTION: IK08
  • AGENCY APPROVALS: cURus
