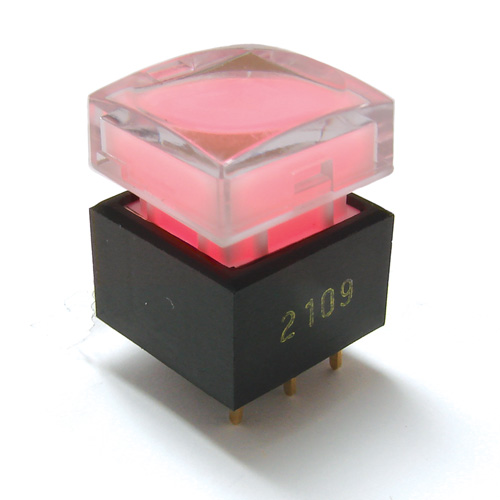

ULP Series Long Life, Illuminated Pushbutton Switch

ULP Series Long Life, Illuminated Pushbutton Switch

The ULP Series long life, illuminated pushbutton switches are availalbe as either maintained (latching) or momentary pushbuttons with either single-pole, double-throw (SPDT) or double-pole, single-throw (DPST) circuits. Many LED color options are available for these illuminated pushbuttons, including RGB color options. There are multiple cap sizes and styles as well. The ULP Series illuminated pushbutton has a long life expectancy, with the mechanical components expected to last one million cycles. This switch comes in PC board or panel mount versions. Termination options include PCB pin and solder lug, and contacts are available in silver or gold. The applications for these long life, illuminated pushbutton switches include:

  • Telecommunications
  • External hard drives and modems
  • Instrumentation
  • Performance audio
  • Computers/servers
  • Networking
  • Low power on/off designs


  • Long life of one million cycles for mechanical components and 200,000 cycle electrical life
  • PC board or panel mount designs with several button options
  • Full LED illumination options
  • SPDT or DPST; maintained (latching) or momentary pushbuttons

ULP Series Long Life, Illuminated Pushbutton Switch

decoration Ulp Series



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Ulp Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

Detail Specifications

ELECTRICAL RATING: Gold: 0.1A Max. @ 28VDC; Silver: 0.5A @ 25VDC; 0.2A @ 250VAC ELECTRICAL LIFE: 200,000 Cycles CONTACT RESISTANCE: 50mΩ Silver, 100mΩ Gold INSULATION RESISTANCE: >100MΩ at 500VDC DIELECTRIC STRENGTH: 1000VAC for 1 Minute OPERATING FORCE: SPDT: 200gf ± 100gf; DPDT: 300gf ± 150gf OPERATING/STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 2.20mm CONTACT ARRANGEMENT: SPDT, DPDT ACTUATION FORCE: SPDT: 200gf; DPDT: 300gf PANEL THICKNESS: 0.75-3.0mm (panel mount version only)
