TS Series Subminiature, Snap Action Switch

TS Series Subminiature, Snap Action Switch

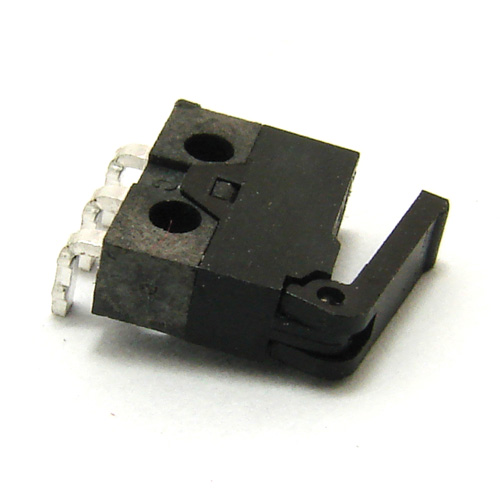

The TS Series subminiature, snap action switch comes with a vertical, left angle, or right angle PCB pin termination in two different lengths: long or short. with a size of just 8.2mm (W) x 6.5mm (H) x 2.7mm (D), the TS series subminiature switch is a smart fit for most designs. The TS Series snap action switches come with lever actuators and Single Pole, Double Throw (SPDT) circuits. The contacts are electrically rated for 300mA of 6VDC and the electrical life expectancy for these subminiature switches is 50,000 cycles. The mechanical life expectancy is 100,000 cycles. These snap action switches operate in temperatures ranging from -25 to 85°C. Applications for these subminiature, snap action switches include, but are not limited to:

  • Security and detection devices
  • Appliances
  • Instrumentation
  • Power tools

FEATURES

  • 300mA, 6VDC electrical rating
  • Minimum 50,000 cycle electrical life
  • Subminiature size
  • Multiple termination options

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Ts Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TS0101F020P
TS0101F020V2

Detail Specifications

ELECTRICAL RATING: 0.3A @ 6VDC MECHANICAL LIFE: 50,000 Cycles Typical INSULATION RESISTANCE: 100MΩ Min. DIELECTRIC STRENGTH: 250VAC for 1 Minute OPERATING TEMPERATURE: -25°C to 85°C STORAGE TEMPERATURE: -30°C to 85°C
