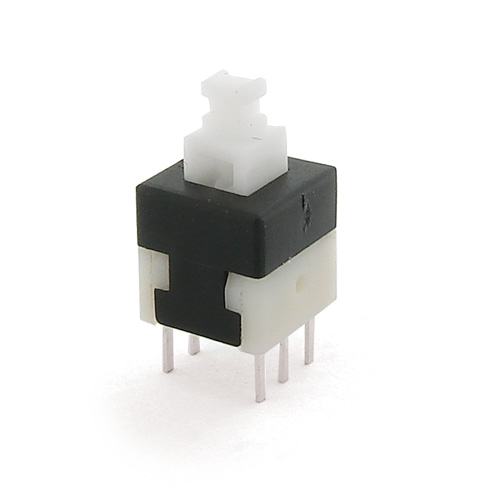

TL2285 Series Subminiature Pushbutton Switch

TL2285 Series Subminiature Pushbutton Switch

  • 100mA, 30VDC
  • Through hole mounting design
  • DPDT; latching or momentary
  • 180gf actuation force
  • -20 to 70°C operating temperature
  • 10,000 cycles mechanical life

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

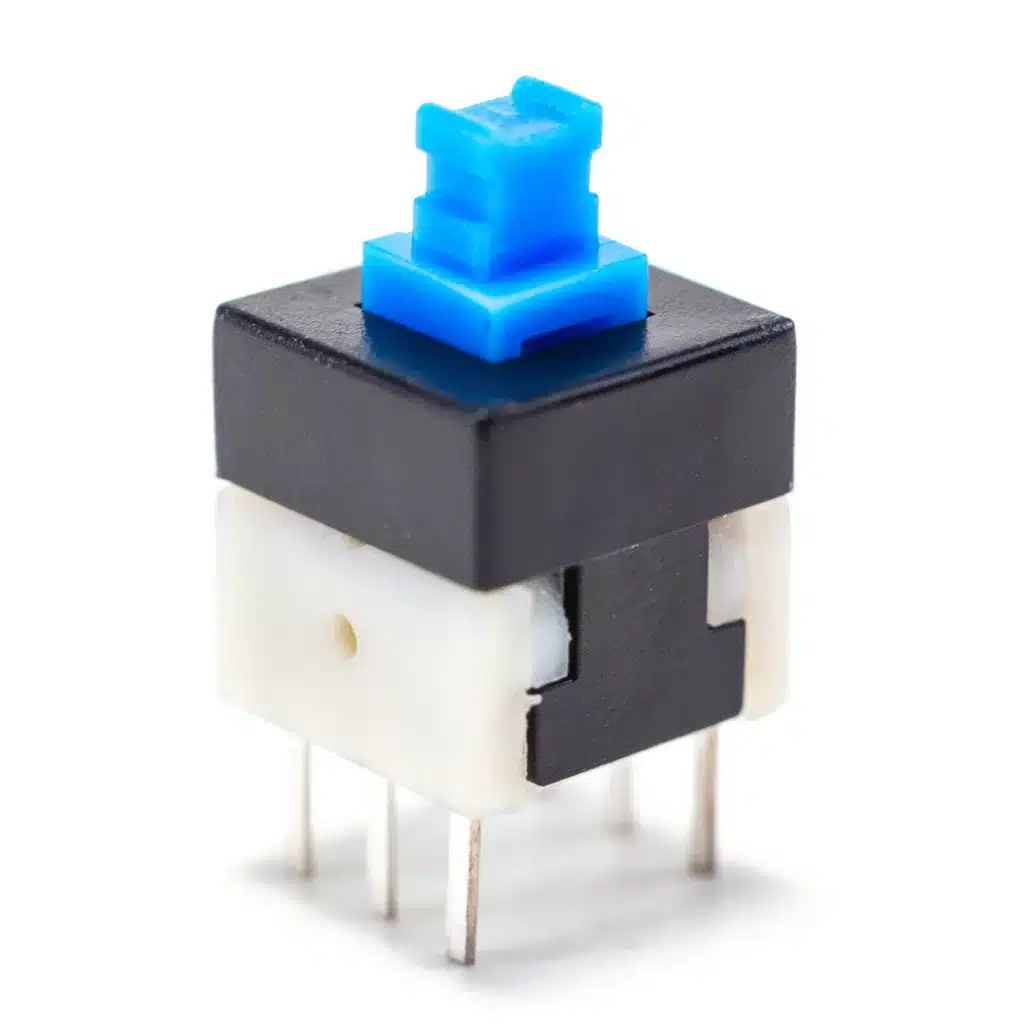

Tl2285ee

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TL2285EE
TL2285OA

Detail Specifications

  • ELECTRICAL RATING: 100mA @ 30VDC
  • MECHANICAL LIFE: 10,000 Cycles
  • CONTACT RESISTANCE: 100mΩ Max.
  • INSULATION RESISTANCE: 100MΩ Min.
  • DIELECTRIC STRENGTH: 500VAC
  • OPERATING FORCE: 180gf
  • OPERATING/STORAGE TEMPERATURE: -20 to 70°C
  • / MATERIALS /
    • HOUSING: PBT
    • ACTUATOR: Acetal
    • COVER: Acetal
    • CONTACTS: Silver plated phosphor bronze
    • TERMINALS: Silver plated copper alloy
    • SPRING: Stainless steel
    • LATCHING PIN: Stainless steel
