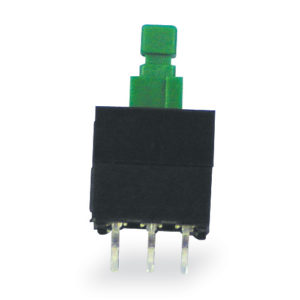

TL2202 Series Subminiature Pushbutton Switch
TL2202 Series Subminiature Pushbutton Switch
- Contact Rating: 100mA @ 30VDC
- PC board mount design
- Up to four poles; momentary and maintained (latching) functions
- Long travel
- Life Expectancy: 10,000 cycles
- Many actuator and cap options available
- MBB (shorting) version
TL2202 Series Subminiature Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- CONTACT RATING: 100mA 30VDC
- MECHANICAL LIFE: 10,000 Cycles
- CONTACT RESISTANCE: 100mΩ Max.
- INSULATION RESISTANCE: > 100MΩ Min.
- DIELECTRIC STRENGTH: 500VAC
