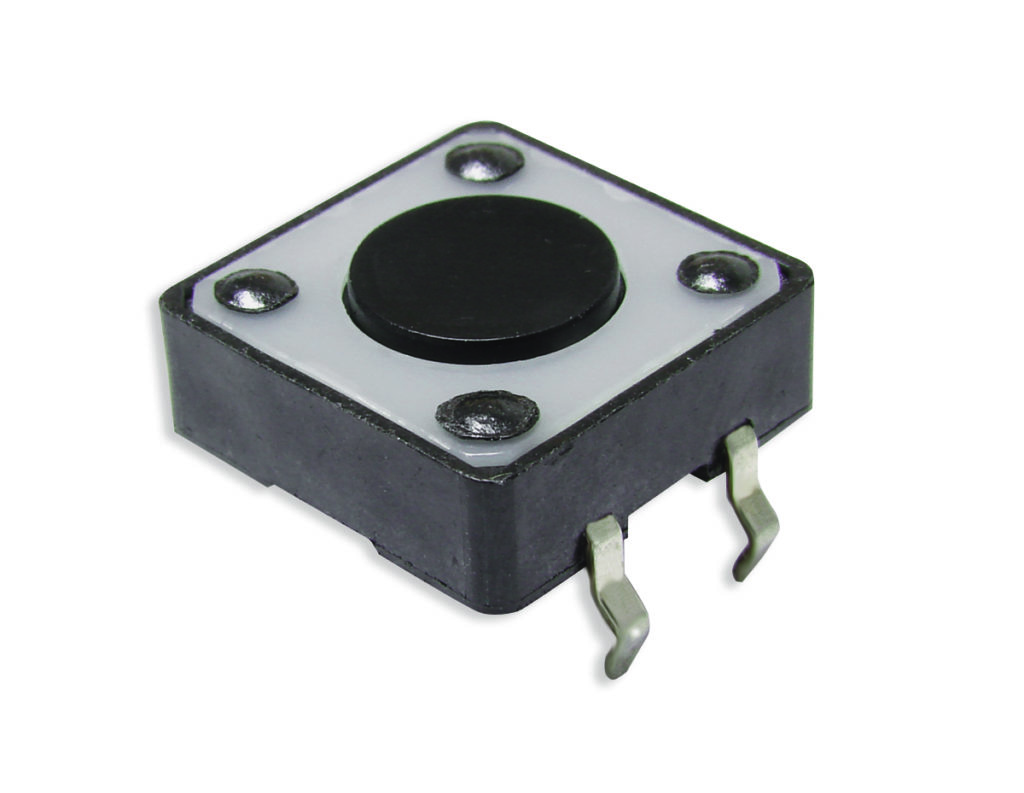

TL1100 Series Through Hole Tactile Switch

TL1100 Series Through Hole Tactile Switch

TL1100 Series: TL1100AF160Q

Categories: TACT

RoHS Compliant REACH Compliant

TL1100 Series Through Hole Tactile Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

TL1100AF160Q

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for TL1100AF160Q

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the TL1100AF160Q from our authorized distributors.

In-Stock Distributors

TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Illuminated


About TL1100 Series

  • Through hole, or through hole right angle mounting design
  • 12mm x 12mm
  • 160gf or 260gf operating force
  • Many actuator height options
  • Many additional cap and color options for certain models
  • 100,000 cycle life
  • Silver or gold contact material
  • -20 to 70°C operating temperature
  • 50mA @ 12VDC

Product Specifications

TL1100AF160Q

TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Illuminated

  • Series Name TL1100
  • PackagingBulk
  • Current Rating50mA
  • Voltage Rating12VDC
  • CircuitSPST-NO
  • FunctionOff-(On)
  • Mounting TypeThrough Hole
  • Termination TypePC Pin
  • Contact MaterialSilver
  • Actuator TypePlunger for Cap
  • Actuator Height7.30mm
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Operating Force160gf
  • Operating Temperature-20°C to 70°C
