TD1150 Series Sealed Detector Switch

TD1150 Series Sealed Detector Switch

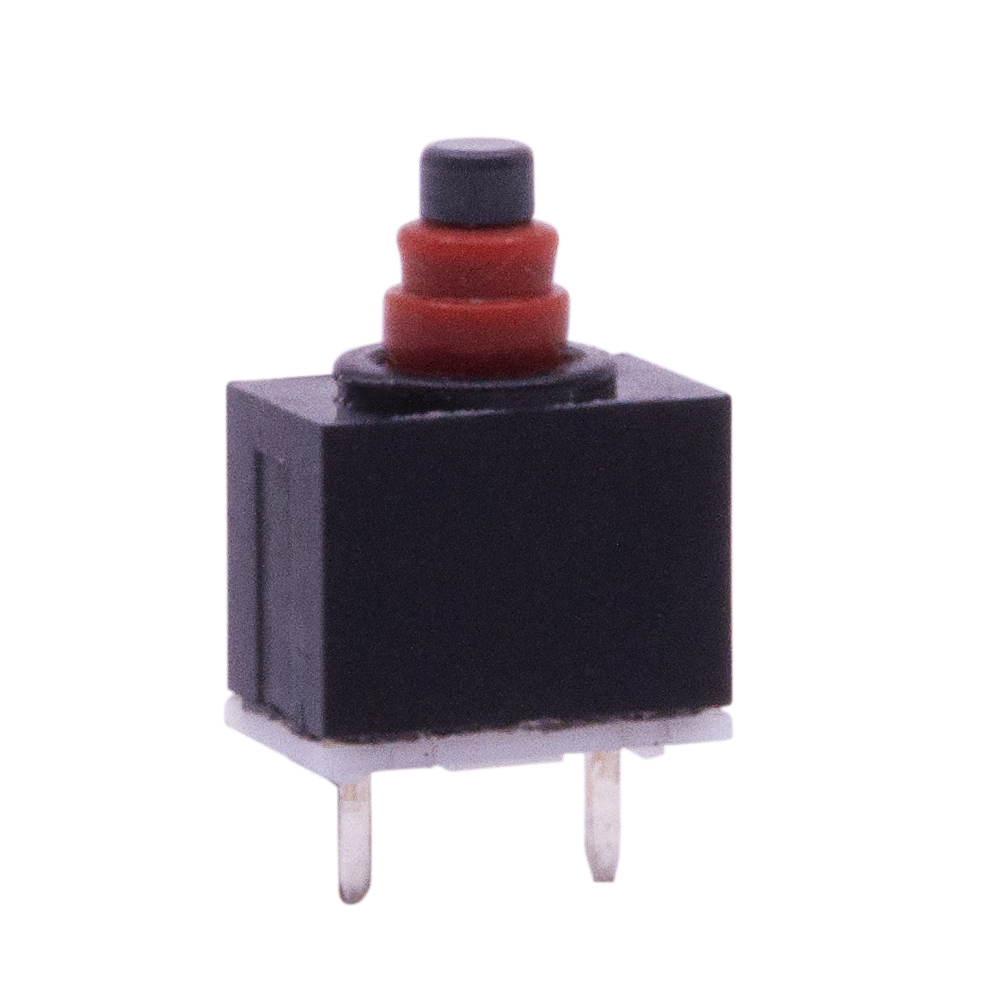

The TD1150 Series is a through-hole, PCB mounted detector switch. It provides full travel of 2.5mm with the electrical make around 0.5mm. Actuation force to the electrical make is just 35 grams.

The TD1150 Series carries an IP67 rating for dust and moisture protection. The operating and storage temperature range is -40°C to 85°C, and the life expectancy is 300,000 cycles. The contact rating for this switch is 100 milli-amps at 12VDC, and it has an initial maximum contact resistance of 500 milli-ohms.

Applications for this detector switch include:

  • White goods
  • Security devices
  • Vending machine
  • HVAC
  • Industrial controls
  • Medical equipment

FEATURES

  • IP67 rated protection from dust and moisture
  • Compact Size
  • Through-hole, PCB mounted detector switch

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Td1150af100q

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 100mA @ 12VDC CONTACT RESISTANCE: 500 mΩ CONTACT ARRANGEMENT: SPST N.O. INSULATION RESISTANCE: 100 MΩ Min. @ 500VDC DIELECTRIC STRENGTH: 500VAC per minute ELECTRICAL LIFE: 300,000 Cycles OPERATING/STORAGE TEMPERATURE: -40°C to 85°C TOTAL TRAVEL: 2.5mm DUST/MOISTURE PROTECTION: IP67 ACTUATION FORCE: 35gf nominal to electrical make; 100gf max travel to full stroke
