SV8 Series Short Body Anti-vandal Switch

SV8 Series Short Body Anti-vandal Switch

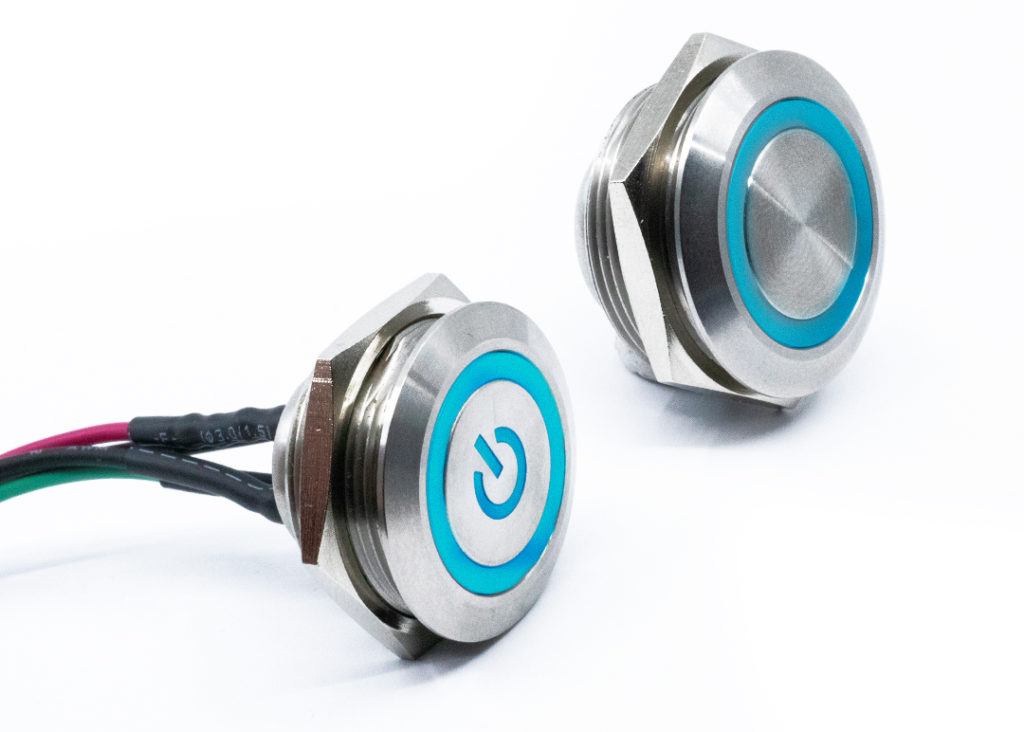

The SV8 Series anti-vandal switch has a 25mm panel cutout, making it the largest of the SV Series. The switch has several customization options, including multiple LED options, Ring or Ring/Power Symbol illumination, and the choice of either wire leads or solder terminals. The SV8 Series is IP67 rated for protection against dust and moisture and has an operating temperature of -20°C to 70°C. This makes it an ideal switch for harsh outdoor environments, including:

  • Industrial controls
  • Kiosks
  • Security devices
  • Medical equipment
  • Audio/visual
  • Electrical housewares
Check out our other SV Series anti-vandal switches to find the ideal switch for your needs:

FEATURES

  • Short body design
  • 25mm diameter panel cutout
  • Multiple LED options
  • Ring or ring/power symbol combo illumination
  • IP67 rated for dust and moisture protection

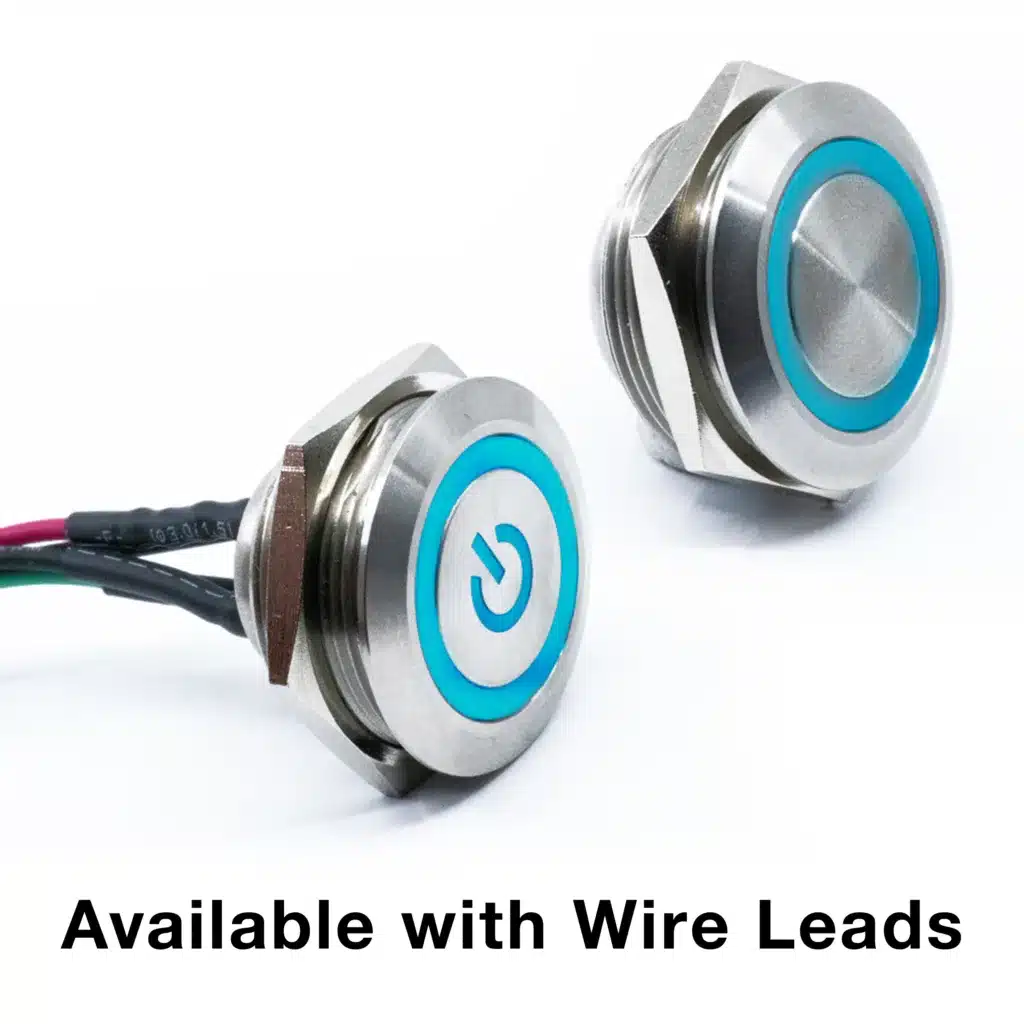

  • Optional soldered wire leads (500mm long)

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Sv8 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

SV8F23SS-351

Detail Specifications

ELECTRICAL RATING: 2A @ 36VDC ELECTRICAL LIFE: 200,000 Cycles CONTACT RESISTANCE: 50mΩ Max. @ 1A, 12VDC DIELECTRIC STRENGTH: 2,000V RMS at sea level OPERATING/STORAGE TEMPERATURE: -20°C to 70°C TRAVEL: 1.80mm DUST/MOISTURE PROTECTION: IP67 CONTACT ARRANGEMENT: SPST ACTUATION FORCE: 4.5 N PANEL THICKNESS: 1-6mm MOUNTING NUT TORQUE: 1-3Nm
