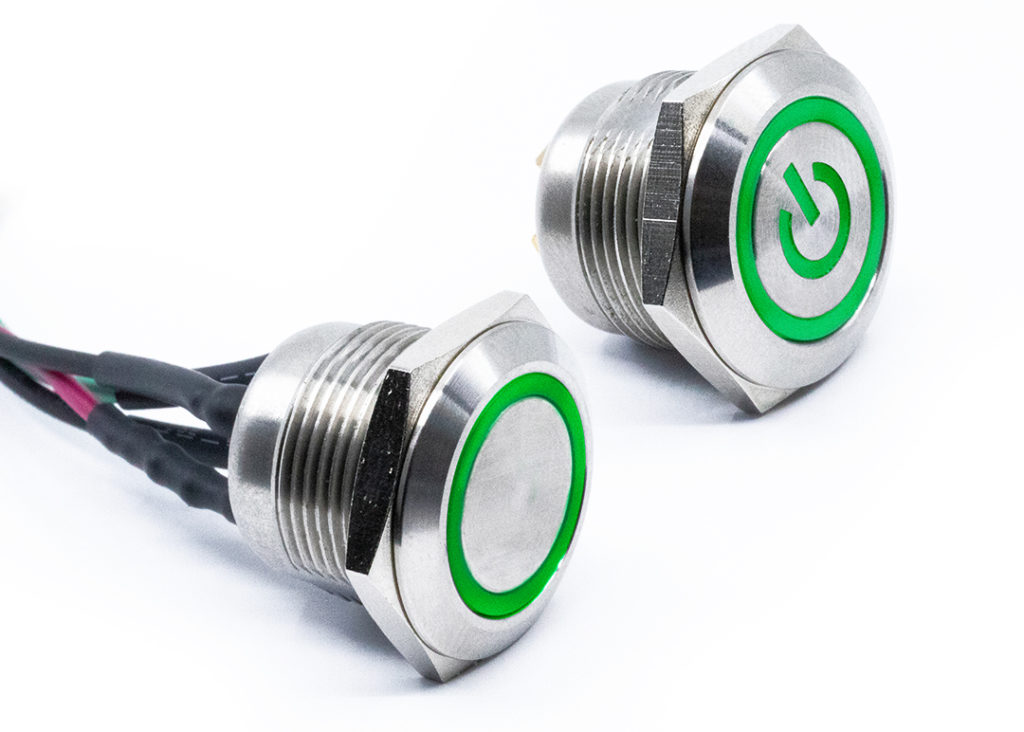

SV4 Series Illuminated, Short Body Anti-Vandal Switch
SV4 Series Illuminated, Short Body Anti-Vandal Switch
- IP67
- 19mm panel cutout
- 2A, 36VDC
- Short body design
- SPST circuit; momentary function
- Solder or wire leads 500mm long termination options
- Stainless steel or black - finish options
- Flat actuator
- Illuminated ring or ring/power symbol options
- Many LED illumination color options including bi-color
- Laser etched custom graphic optional
- 1 million cycles mechanical life
- -20°C to 70°C operating temperature
SV4 Series Illuminated, Short Body Anti-Vandal Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 2A @ 36VDC
- ELECTRICAL LIFE: 200,000 Cycles
- CONTACT RESISTANCE: 50mΩ Max. @ 1A, 12VDC
- DIELECTRIC STRENGTH: 2,000V RMS at sea level
- OPERATING/STORAGE TEMPERATURE: -20°C to 70°C
- TRAVEL: 1.80mm
- DUST/MOISTURE PROTECTION: IP67
- CONTACT ARRANGEMENT: SPST
- ACTUATION FORCE: 4.5 N
- PANEL THICKNESS: 1-6mm
- MOUNTING NUT TORQUE: 1-3Nm
