ST4 Series Sealed Toggle Switch

The ST4 Series sealed toggle switches are rated IP68 for dust and moisture protection and offer single pole or double pole circuit function with 2 or 3 actuator positions. Select from 10 different function options and three electrical rating options. This toggle switch features either a 17mm metal or 22mm plastic bat actuator. The ST4 Series toggle switch also offers four terminal options: 3/16” quick connect, 1/4” quick connect, solder lug, and screw terminal. The ST4 Series industrial toggle switch series joins the ST1ST2, and ST3 Series of heavy-duty toggles. These ST Series toggle switches are UL approved. Series ST1 (1-pole) and ST 2 (2-pole) provide 20A 125VAC, 15A/277 VAC; 2.0HP 125-277VAC (maintained) and 1.5HP 125-277VAC (momentary). The ST3 (3-pole) series ratings – 24A 125VAC, 15A 277VAC and 2,0HP 123 – 277VAC. Common applications for these high power, sealed toggle switches include:

  • Floor care and commercial appliances
  • Industrial controls
  • Medical/dental equipment
  • HVAC equipment
  • Kiosks for vending and ticket dispensers
  • Dashboards on off-road, auto, and boating vehicles

  • IP68 protection rating against dust and moisture
  • Multiple termination options
  • Single or double pole circuits
  • Available in both 2 or 3 position circuits
  • Multiple actuator options

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

St4dp10dt2c1

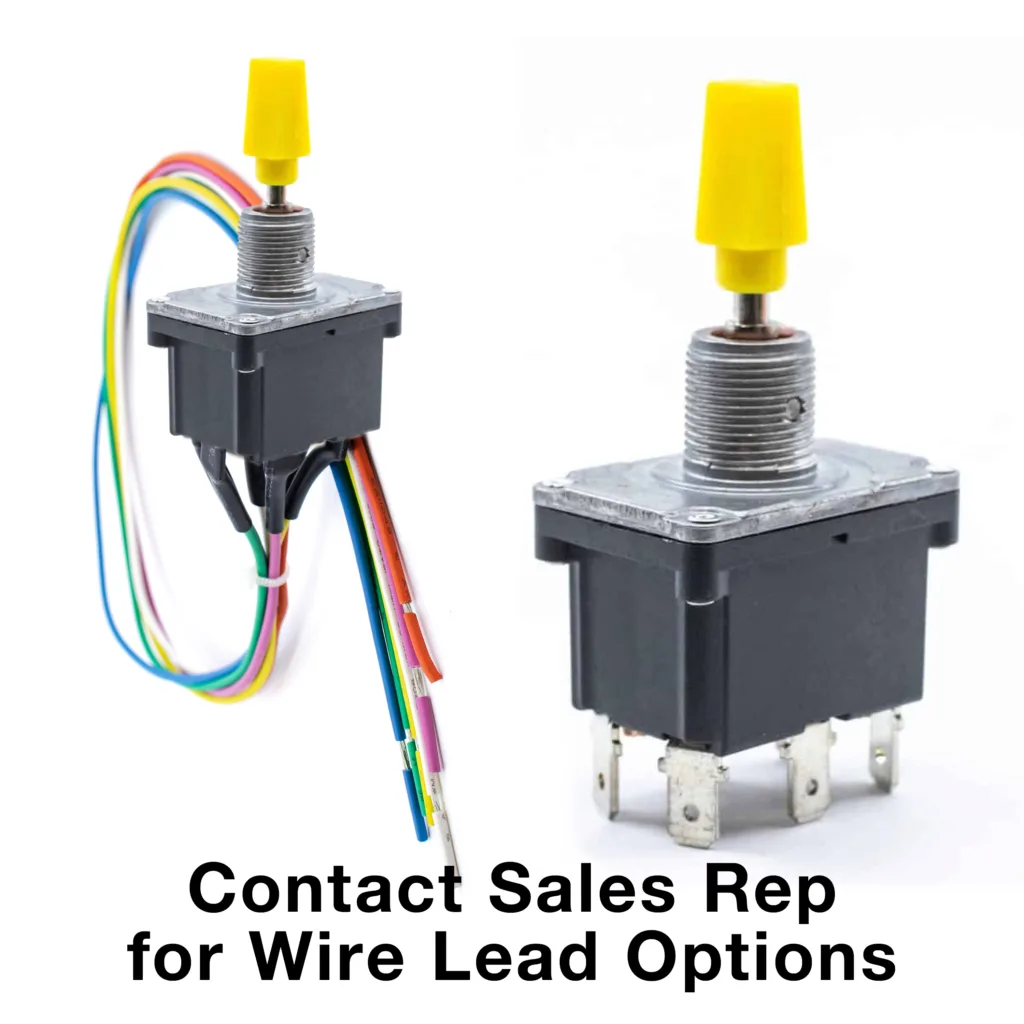

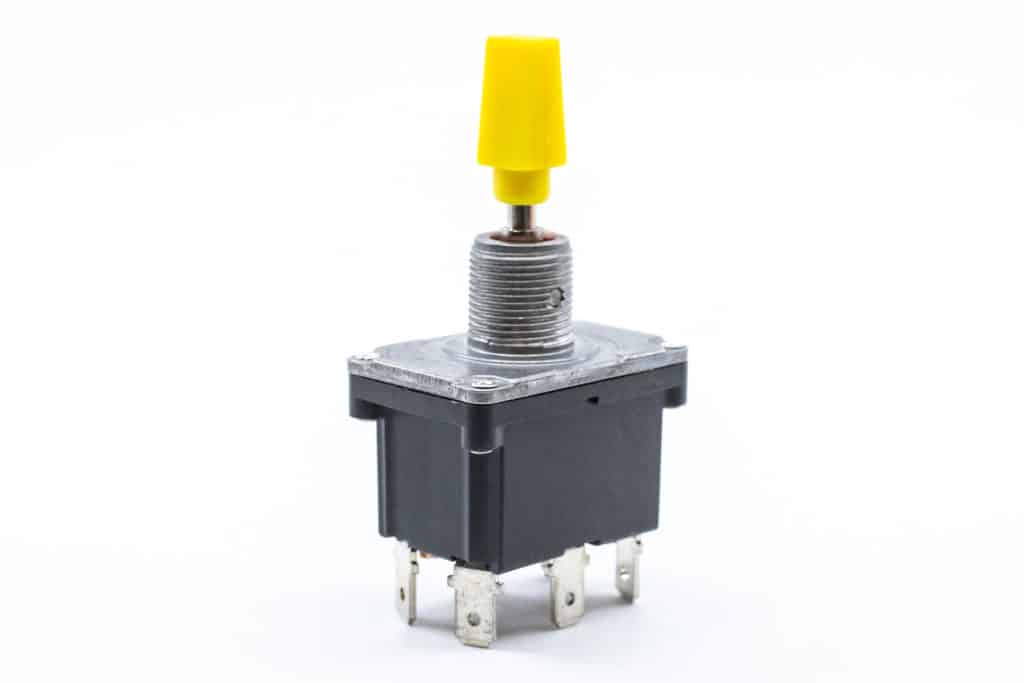

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 16(8)A @ 125/250VAC, μT55; 20(8)A @ 125/250VAC, μT55; 20A @ 6-30VDC, μT55 ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 50mΩ Max. initial INSULATION RESISTANCE: 50MΩ Min. DIELECTRIC STRENGTH: 1500V RMS OPERATING TEMPERATURE: -10°C to 55°C STORAGE TEMPERATURE: -10°C to 65°C CIRCUIT FUNCTION: SP or DP; 2- or 3-position AGENCY APPROVALS: cURus DUST/MOISTURE PROTECTION: IP68 PANEL THICKNESS: 1-8mm
