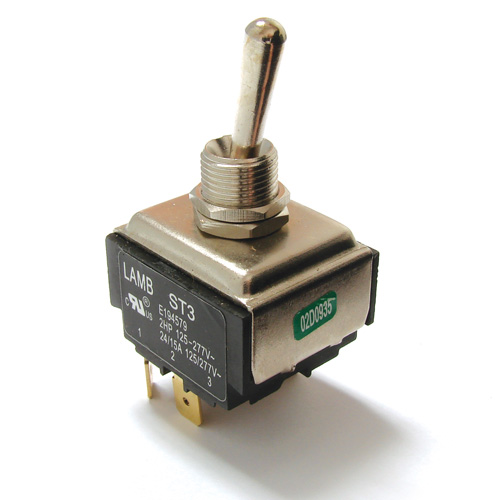

ST3 Series High Current, Power Toggle Switch
ST3 Series High Current, Power Toggle Switch
- Electrical Ratings:
- 20A 125VAC; UL, cUL
- 15A 277VAC; UL, cUL
- 2.0HP 125-277VAC; UL, cUL
- 3PST or 3PDT circuit; latching function
- Tab, solder, screw, or wire leads termination options
- 12mm diameter panel cutout
- 0°C to 85°C operating temperature
ST3 Series High Current, Power Toggle Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 24A @ 125VAC [cULus]; 15A @ 277VAC [cULus]; 2HP @ 125-277VAC [cULus]
- OPERATINGTEMPERATURE: 0°C to 85°C
- STORAGE TEMPERATURE: -20°C to 85°C
- ELECTRICAL LIFE: 6,000 Cycles
- CONTACT RESISTANCE: 50mΩ Max.
- INSULATION RESISTANCE: 2MΩ Min. @ 500VDC for 1 minute
- DIELECTRIC STRENGTH 1,000VAC for 1 Minute
- CIRCUIT FUNCTION: 3PST, 3PDT, latching function
- PANEL CUTOUT: 12mm diameter
