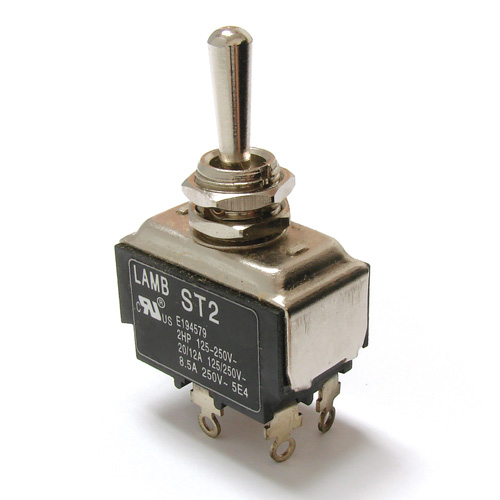

ST2 Series High Current, Power Toggle Switch

ST2 Series High Current, Power Toggle Switch

  • Electrical Ratings:
    • 20A 125VAC; UL, cUL
    • 15A 277VAC; UL, cUL
    • 2.0HP 125-277VAC; UL, cUL (latching),  1.5HP 125-277VAC; UL, cUL (momentary)
  • DPST-NO, DPST, or DPDT circuit; momentary or latching function

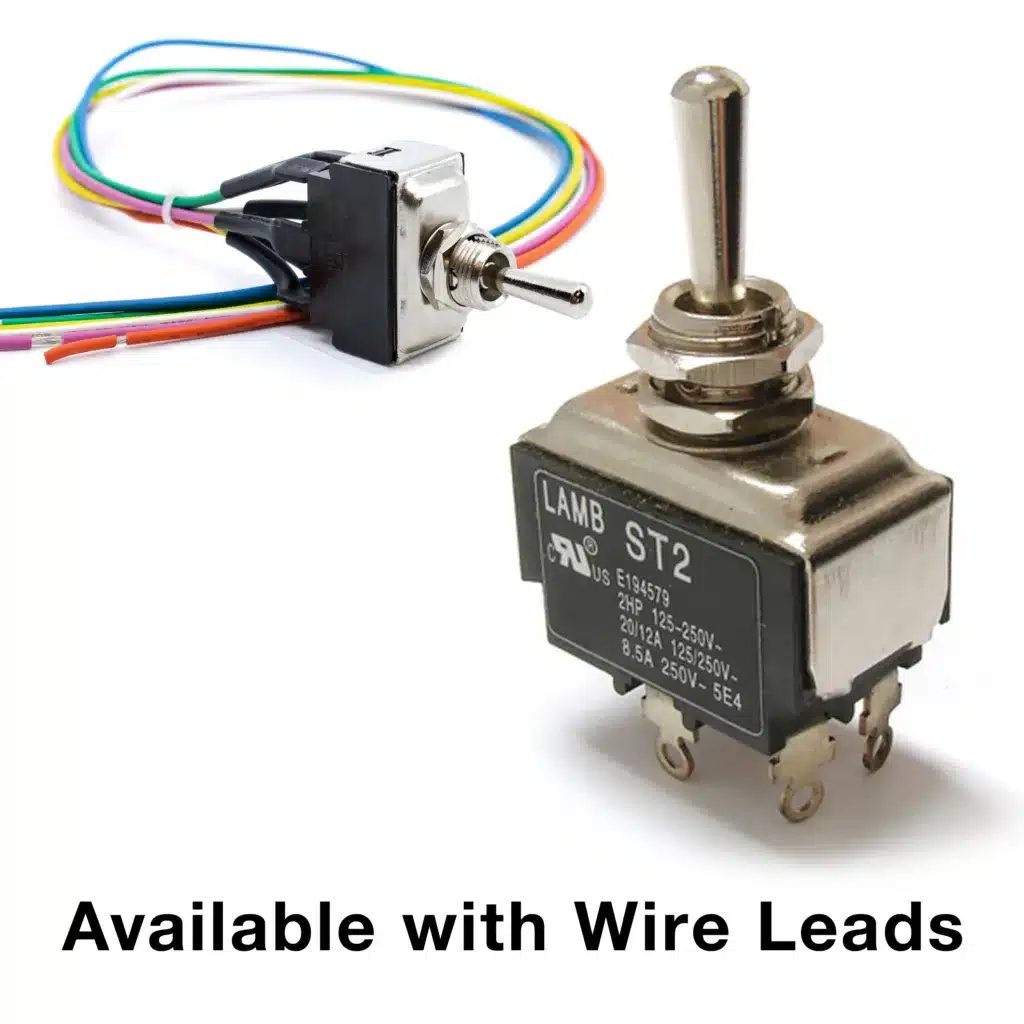

  • Tab, solder, screw, or wire leads termination options
  • M12 x 1.0 or 15/32” - 32UNS bushing options
  • 12mm diameter panel cutout
  • 0°C to 85°C operating temperature

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

St2 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

  • ELECTRICAL RATING: Maintained Switches: 20A @ 125VAC [cULus]; 15A @ 277VAC [cULus]; 2HP @ 125-277VAC [cULus]; Momentary Switches: 20A @ 125VAC [cULus]; 15A @ 277VAC [cULus]; 1.5HP @ 125-277VAC [cULus]
  • OPERATING TEMPERATURE: 0°C to 85°C
  • STORAGE TEMPERATURE: -20°C to 85°C
  • ELECTRICAL LIFE: 6,000 Cycles
  • CONTACT RESISTANCE: 50mΩ Max.
  • INSULATION RESISTANCE: 2MΩ Min. @ 500VDC
  • DIELECTRIC STRENGTH: 1,000VAC for 1 Minute
  • CIRCUIT FUNCTION: DPST-NO, DPST, DPDT, momentary or latching functions
  • PANEL CUTOUT: 12mm diameter
