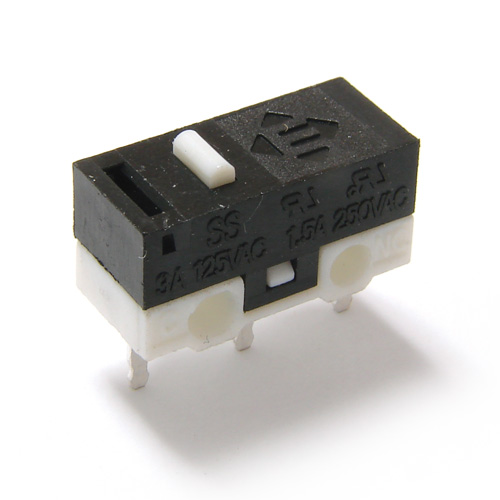

SS Series Subminiature, Snap Action Switch

SS Series Subminiature, Snap Action Switch

The SS Series subminiature, snap action switches are designed for higher reliability applications, with an operating life expectancy of up to one million cycles. Pin plunger, lever, or simulated roller actuators are available for these snap action switches. Terminal options include: PCB pin, PCB retention, right angle PCB pin, left angle PCB pin, and solder lug. The SS Series subminiature, snap action switch is 12.7mm (W) x 6.5mm (H) x 5.75mm (D). It comes with a Single Pole, Double Throw (SPDT) circuit, and is available with either silver or gold contacts that can handle direct and alternating currents. Applications for this subminiature, snap action switch include:

  • Appliances
  • Timing controls
  • Vending machines
  • Gaming
  • Industrial controls

FEATURES

  • 3A, 125VAC electrical rating
  • Life expectancy of a million cycles
  • Available with gold contacts
  • Multiple actuator and termination options

SS Series Subminiature, Snap Action Switch

decoration SS Series Subminiature, Snap Action Switch

Industry Utilization:

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

SS Series Subminiature, Snap Action Switch

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

ELECTRICAL RATING: Gold: 0.4VA Max. @ 20VDC or VAC Max.; 0.1A @ 125 VAC; 1.5A @ 250VAC; 3A @ 125VAC LIFE EXPECTANCY: 10,000 Cycles Typical MECHANICAL LIFE: 1,000,000 Cycles Typical INSULATION RESISTANCE: 100MΩ Min. @ 500VDC DIELECTRIC STRENGTH: 500VDC OPERATING/STORAGE TEMPERATURE: -25°C to 75°C OPERATING FORCE: See Chart in Data Sheet
