Flat actuator
Stainless steel or black anodized finish options
Illuminated ring, ring and power symbol, or non-illuminated
Many LED illumination color options including bi-color
Many illumination voltage options
10,000 cycles electrical life
-25°C to 85°C operating temperature
" />

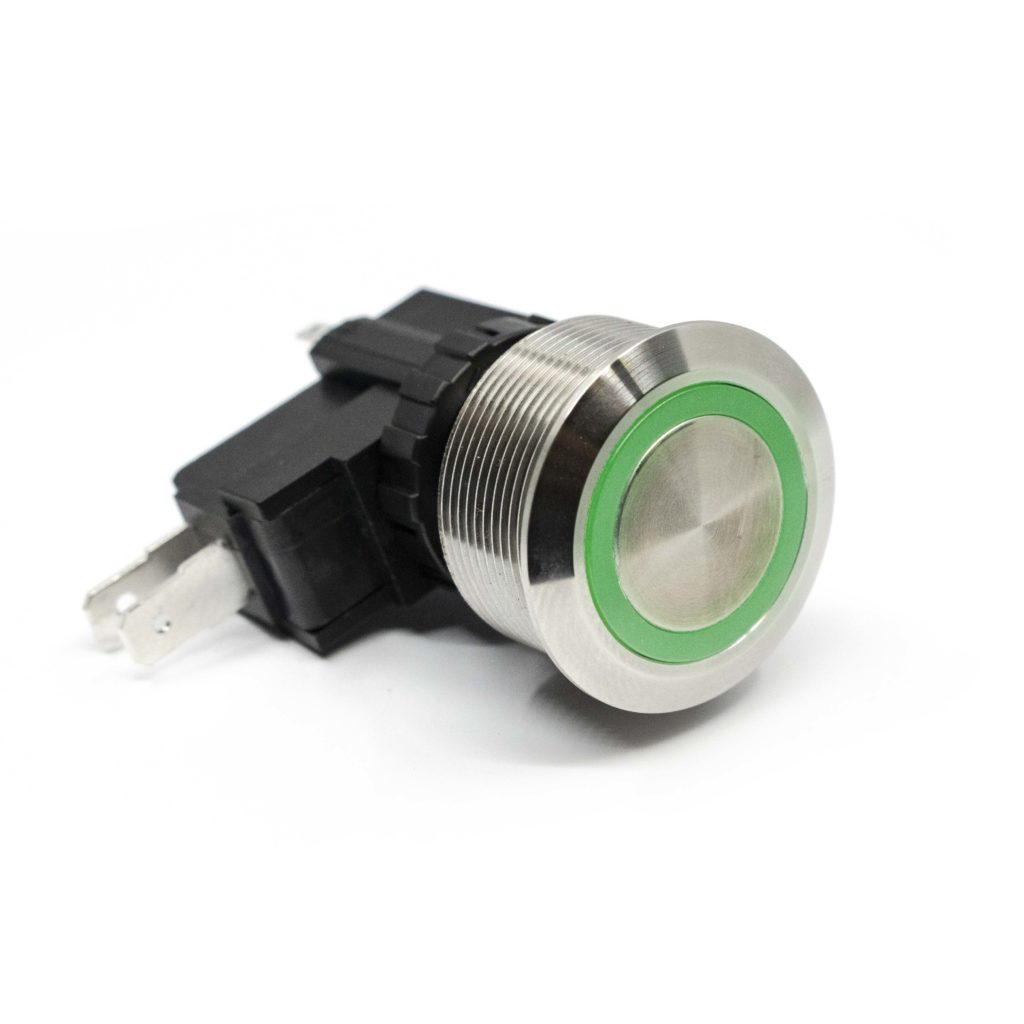

SAV7 Series Illuminated, High Current Anti-Vandal Switch
SAV7 Series Illuminated, High Current Anti-Vandal Switch
- IP67
- 22mm panel cutout
- 15A, 125/250VAC; high current anti-vandal switch
- SPDT circuit; latching or momentary function
- Quick connect - 0.187" (4.7mm) termination
- Flat actuator
- Stainless steel or black anodized finish options
- Illuminated ring, ring and power symbol, or non-illuminated
- Many LED illumination color options including bi-color
- Many illumination voltage options
- 10,000 cycles electrical life
- -25°C to 85°C operating temperature

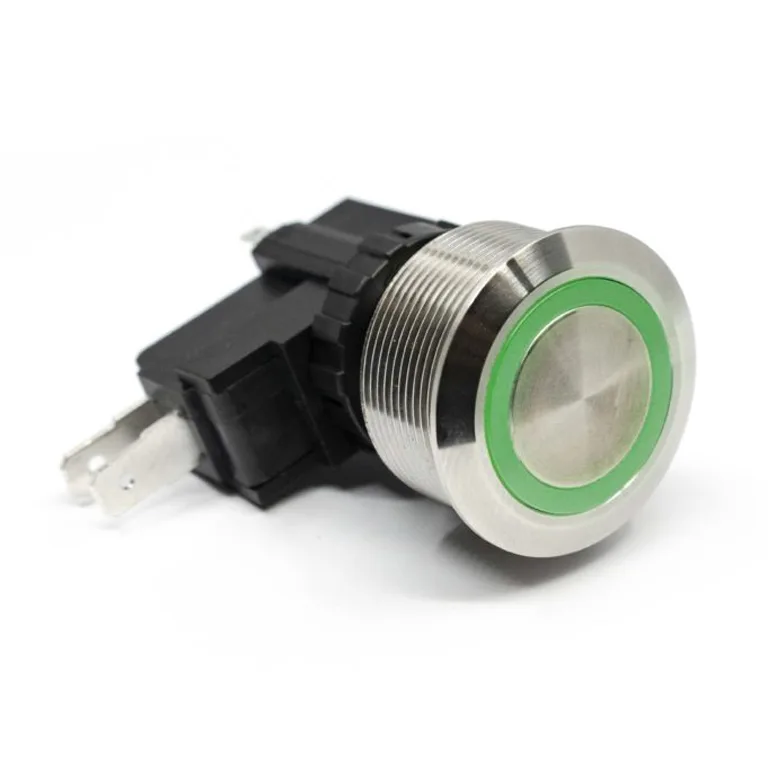

SAV7 Series Illuminated, High Current Anti-Vandal Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 15A @ 125/250VAC
- ELECTRICAL LIFE: 10,000 Cycles
- CONTACT RESISTANCE: 100mΩ max,
- INSULATION RESISTANCE: 100MΩ @ 500VDC
- DIELECTRIC STRENGTH: 1,500VAC for 60 seconds
- OPERATING/STORAGE TEMPERATURE: -25°C to 85°C
- TRAVEL: 3.2mm
- DUST/MOISTURE PROTECTION: IP67 (at front panel)
- ACTUATION FORCE: 3.5N
- PANEL THICKNESS: 1-10mm
- HEX NUT TORQUE: 1-3Nm
