  • Full illumination or non-illuminated options
  • Many housing and actuator color options
  • Eight actuator marking options
  • Multiple LED illumination color and voltage options
  • -20°C to 105°C operating temperature
  • " />

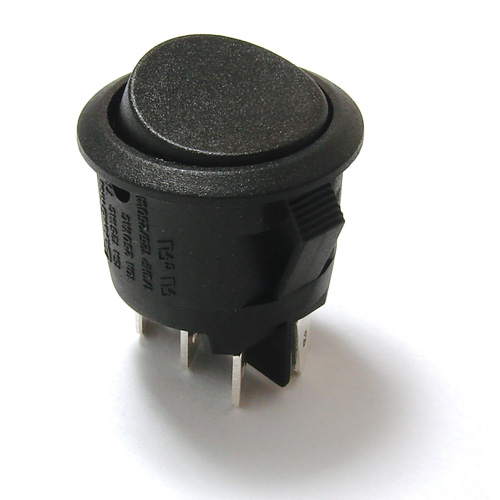

    RRA Series Round, Illuminated, Power Rocker Switch with PVC Cap

    RRA Series Round, Illuminated, Power Rocker Switch with PVC Cap

    • IP54 with PVC cap
    • 22mm panel cutout
    • Up to 15A, 125VAC, 1/3HP; UL, cUL
    • 1 or 2 poles; 2 or 3 positions; latching function
    • Panel mount snap-in design
    • Quick connect - 0.187" termination
    • Full illumination or non-illuminated options
    • Many housing and actuator color options
    • Eight actuator marking options
    • Multiple LED illumination color and voltage options
    • -20°C to 105°C operating temperature

    RRA Series Round, Illuminated, Power Rocker Switch with PVC Cap

    decoration Rra Wire

    Industry Utilization:

    CERTIFICATIONS

    CATEGORIES

    Series Configurator

    * If you need further customization let us know and we'll see how we can help!

    Product Number:

    Rra Wire

    * Product image not available for this configuration.

    Displaying general product image that doesn't necessarily match configuration.

    Detail Specifications

    • ELECTRICAL RATING: Option C: 15A @ 125VAC [UR, cUR]; 10A @ 250VAC [UR, cUR]; 1/3HP @ 125/250VAC [UR, cUR]; Option 3: 10A @ 125VAC [UR, cUR]
    • OPERATING/STORAGE TEMPERATURE: -20°C to 105°C [UR, cUR]
    • ELECTRICAL LIFE: 10,000 Cycles
    • CONTACT RESISTANCE: 35mΩ Max. @ 50VAC
    • INSULATION RESISTANCE: 100MΩ Min. @ 500VAC
    • DIELECTRIC STRENGTH: 1,500VAC for 1 Minute
    • / MATERIALS /
      • BODY: Polyamide 6/6, UL94 V-2
      • ACTUATOR: Polyamide 6/6, UL94 V-2; Polycarbonate, UL94 V-2
      • CONTACTS: Silver Alloy
      • TERMINALS: Silver Plated Copper
