Read MoreRR8 Series Round, Illuminated, Power Rocker Switch with PVC Cap

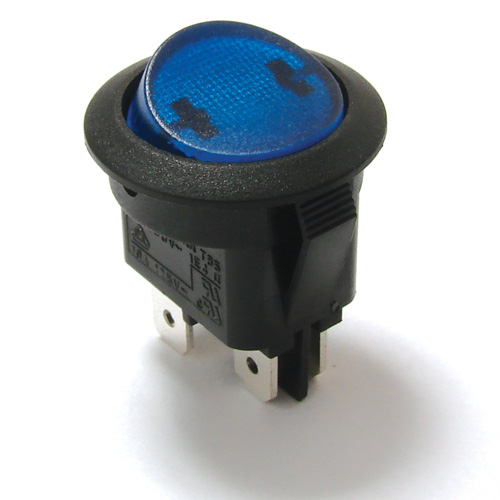

RR8 Series Round, Illuminated, Power Rocker Switch with PVC Cap
Stock Check for RR8123102R-134
Not the product you are looking for? Configure your product
ROCKER, 10A, 125VAC, DPST, Off-On, Panel Mount, Snap-In, Illuminated
About RR8 Series
- IP54 with PVC Cap: ACC-P03
- 20mm diameter panel cutout
- Up to 16A, 125VAC, 1/3HP; UL, cUL
- DPST; Off-On
- Panel mount snap-in design
- Quick connect – 0.187″, or wire leads termination
- Full illumination or non-illuminated options
- Many housing and actuator color options
- Five actuator marking options
- Multiple LED illumination color and voltage options
- -20°C to 105°C operating temperature
RR8 Series Markets
Product Specifications
RR8123102R-134
ROCKER, 10A, 125VAC, DPST, Off-On, Panel Mount, Snap-In, Illuminated
- Series Name RR8
- PackagingBulk
- Current Rating10A
- Voltage Rating125VAC
- CircuitDPST
- FunctionOff-On
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.187"
- Actuator TypeRound - Illuminated
- Actuator ColorGreen
- Illumination StyleFull
- Illumination ColorLED, Green
- Illumination Voltage12VDC
- MarkingI/O Horizontal
- Panel Cutout DimensionsCircular - 20mm Dia.
- Operating Temperature-20°C to 105°C
Support for RR8123102R-134
Not the product you are looking for? Configure your product
