RP8600 Series Square, Sealed Pushbutton Switch

The RP8600 Series square, sealed pushbutton switch protects against temporary immersion at an IP67 rating. This square pushbutton switch features a threaded panel mount meant for a cutout of 16.0mm in diameter. The RP8600 Series sealed pushbutton switches have a mechanical life expectancy of 100,000 operating cycles and an electrical life expectancy of 50,000 cycles. These switches operate in temperatures ranging from -30 to 85°C. Applications for this square, sealed pushbutton switch include:

  • Audio/visual
  • Electrical housewares
  • Floor care appliances
  • Medical devices
  • White goods

FEATURES

  • IP67 rated protection from dust and moisture
  • Life expectancy of 100,000 cycles
  • 0.4VA Max @ 20V Max (AC or DC) power rating
  • SPST, momentary pushbuttons

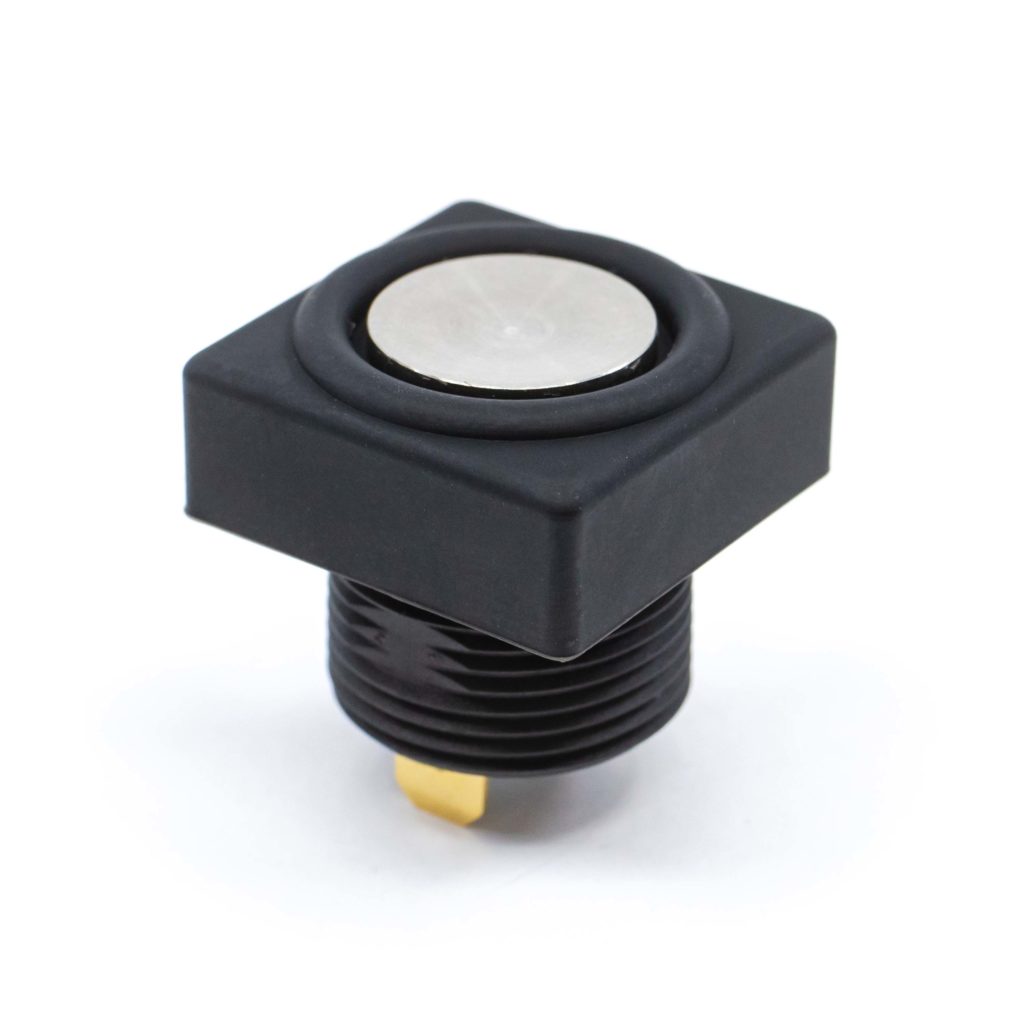

RP8600 Series Square, Sealed Pushbutton Switch

decoration Rp8600b2m1ceblksil

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Rp8600b2m1ceblksil

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 0.4VA Max. @ 20V Max (AC or DC) ELECTRICAL LIFE: 50,000 Cycles MECHANICAL LIFE: 100,000 Cycles CONTACT RESISTANCE: 200mΩ Initial @ 2-4VDC, 100mA INSULATION RESISTANCE: 100MΩ @ 500VDC DIELECTRIC STRENGTH: 1,000VAC for 1 minute OPERATING/STORAGE TEMPERATURE: -30°C to 85°C TRAVEL: 0.65 +/- 0.20mm CONTACT ARRANGEMENT: SPST, Off-(On) ACTUATION FORCE: 630 gf +/- 130 grams PANEL THICKNESS: 1.5mm - 4.0mm DUST/MOISTURE PROTECTION: IP67 MAX HEX NUT TORQUE: 2.2 Nm Max.
