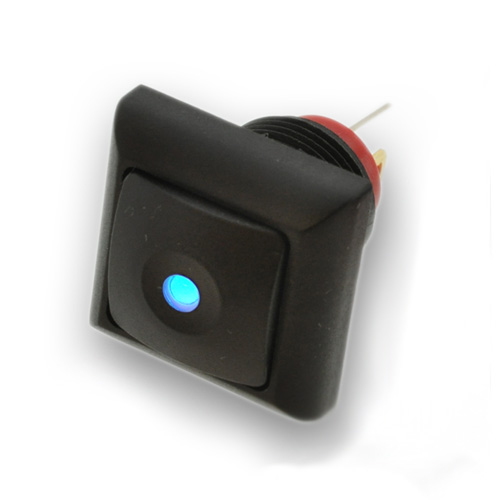

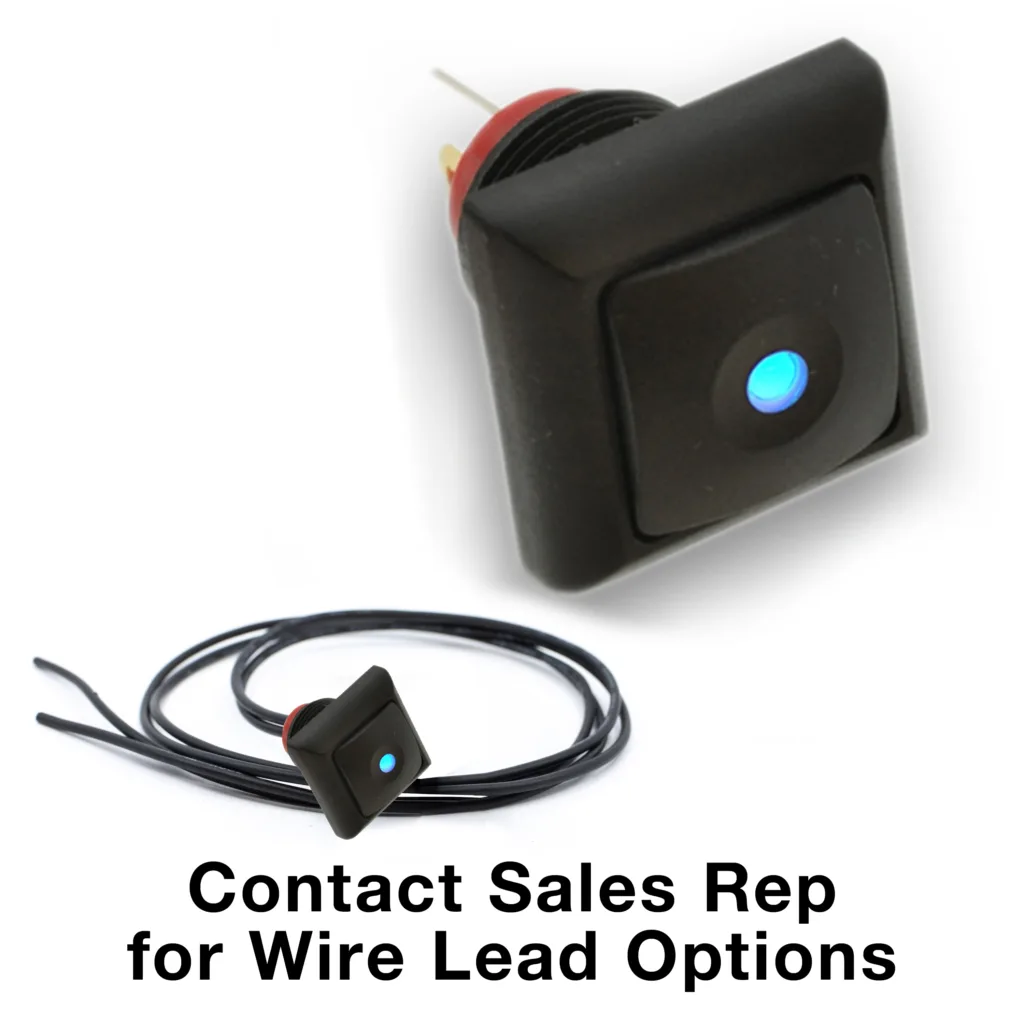

RP8500 Series Square Illuminated Panel Mount Pushbutton Switch
RP8500 Series Square Illuminated Panel Mount Pushbutton Switch
- IP67 rated protection from dust and moisture
- Threaded mount
- Electrical Rating: 125mA @ 125VAC; 100mA @ 50VDC
- 13.6mm diameter panel cutout
- SPST, momentary pushbuttons
- LED illumination options
- 500,000-cycle life expectancy
- Nylon housing and actuator
- Travel: 1.5mm
- Operating Temperature: -30°C to 85°C
RP8500 Series Square Illuminated Panel Mount Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 125mA @ 125VAC; 100mA @ 50VDC
- LIFE EXPECTANCY: 500,000 Cycles
- CONTACT RESISTANCE: 50mΩ Max.
- INSULATION RESISTANCE: 1,000MΩ Min. @ 500VDC
- DIELECTRIC STRENGTH: 1,500VAC for 1 minute
- OPERATING/STORAGE TEMPERATUR: -30°C to 85°C
- TRAVEL: 1.5mm
- CONTACT ARRANGEMENT: SPST, Off-(On)
- ACTUATION FORCE: 350 gf
- PANEL THICKNESS: 1.5mm - 4.0mm
- PANEL CUTOUT: 13.6mm diameter
- DUST/MOISTURE PROTECTION: IP67
