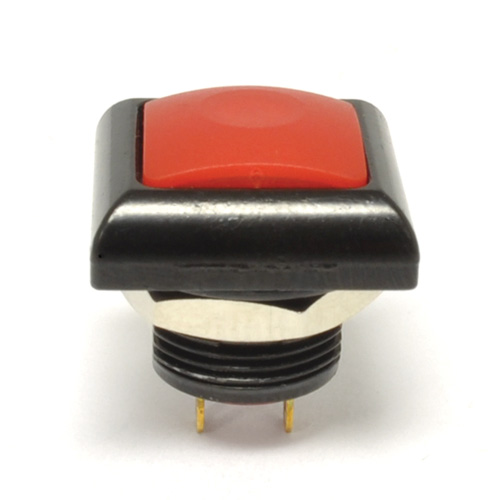

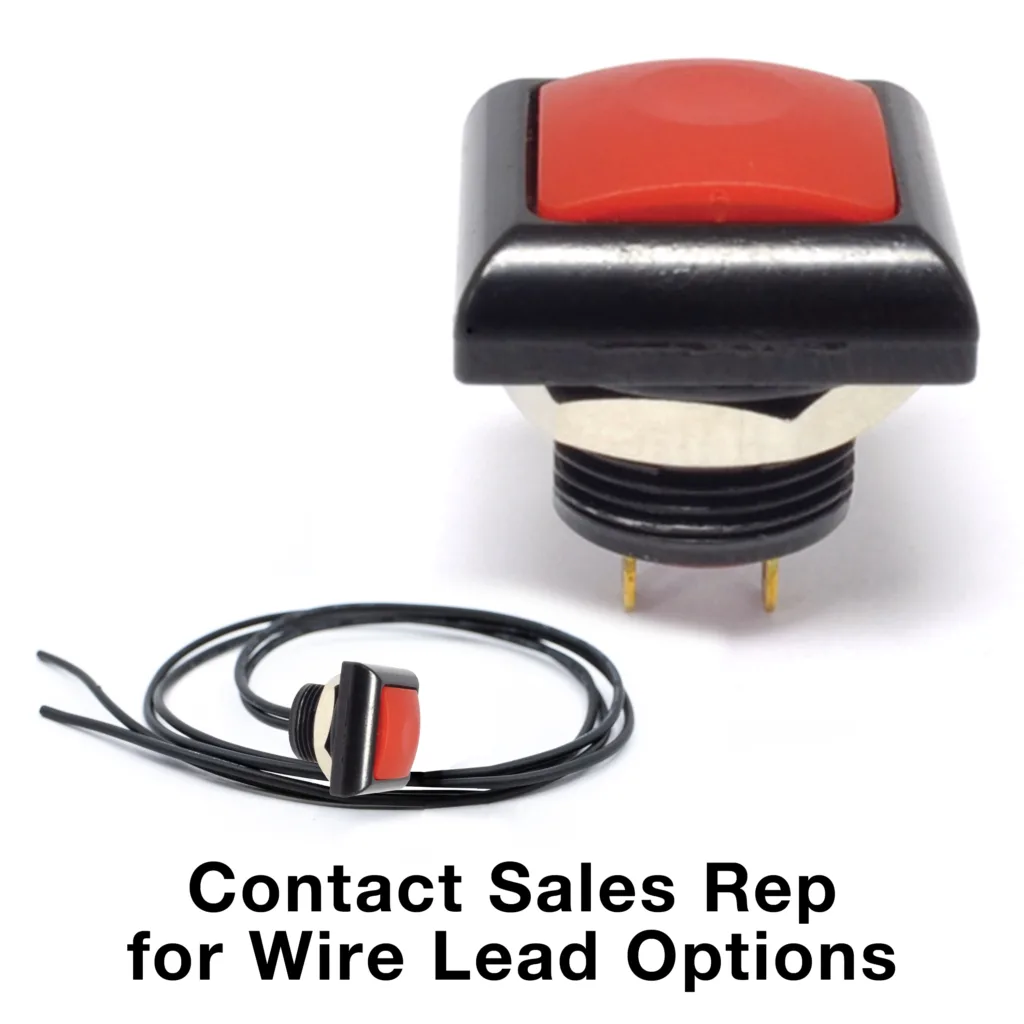

RP8400 Series Square, Illuminated Pushbutton Switch
RP8400 Series Square, Illuminated Pushbutton Switch
- IP67 rated protection from dust and moisture
- Panel Cutout: 13.6mm diameter
- Metal Die-cast housing with nylon actuator
- Threaded mount
- Life expectancy of 500,000 cycles
- Electrical Rating: 125mA @ 125VAC; 100mA @ 50VDC
- LED illumination options
- SPST, momentary pushbuttons
- Operating Temperature: -30°C to 85°C
- Travel: 1.5mm
RP8400 Series Square, Illuminated Pushbutton Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 500mA @ 48 VAC; 200mA @ 50 VDC; 200mA @ 250 VAC
- LIFE EXPECTANCY: 500,000 Cycles at Full Load
- CONTACT RESISTANCE: 50mΩ Max. (Initial)
- INSULATION RESISTANCE: 1,000MΩ Min. at 500VDC
- DIELECTRIC STRENGTH: 1,500VAC RMS
- OPERATING FORCE: 350gf ± 150gf
- OPERATING/STORAGE TEMPERATURE: -30°C to 85°C
- CONTACT BOUNCE: 10ms Max.
- TRAVEL: 1.5mm ± 0.25mm
- PANEL CUTOUT: 13.6mm Diameter
- PANEL THICKNESS RANGE: 1.5mm - 4.0mm
- FUNCTION: SPST, Off-(On) Momentary
