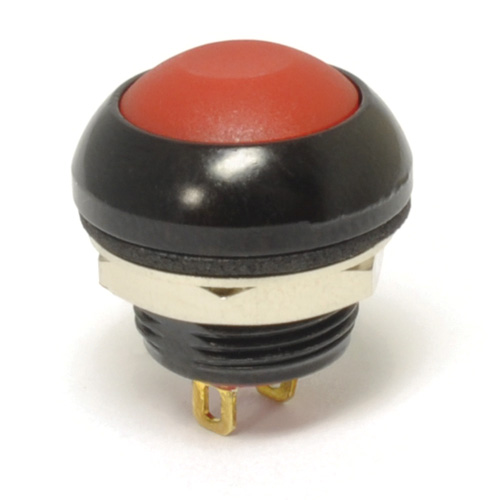

RP8300 Series Round, Illuminated Pushbutton Switch

RP8300 Series Round, Illuminated Pushbutton Switch

The RP8300 Series round, illuminated pushbutton switch is encased in a metal die cast housing. This panel mount pushbutton series is for those seeking rounder edges and industrial strength durability without sacrificing style. Multiple LED and cap color options are available for this illuminated pushbutton. The RP8300 Series round pushbuttons feature a threaded panel mount, perform momentary functions, and are sealed at an IP67 rating. They also has a long life expectancy of 500,000 cycles. Applications for this round, illuminated pushbutton switch include:

  • Audio/visual
  • Electrical housewares
  • Floor care appliances
  • Medical devices
  • White goods

FEATURES

  • Sealed at an IP67 rating for dust and moisture protection
  • Life expectancy of 500,000 cycles
  • 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC electrical ratings
  • SPST, momentary pushbuttons

RP8300 Series Round, Illuminated Pushbutton Switch

decoration Rp8300 Wire

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Rp8300 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

RP8300B2M1CEBLKBLKNIL
RP8300B2M1CEBLKBLUNIL

Detail Specifications

ELECTRICAL RATING: 500mA @ 48 VAC; 200mA @ 50 VDC; 200mA @ 250 VAC LIFE EXPECTANCY: 500,000 Cycles at Full Load CONTACT RESISTANCE: 50mΩ Max. (Initial) INSULATION RESISTANCE: 1,000MΩ Min. at 500VDC DIELECTRIC STRENGTH: 1,000VAC RMS OPERATING FORCE: 350gf OPERATING TEMPERATURE: -30°C to 85°C CONTACT BOUNCE: 10ms Max. TRAVEL: 1.5mm PANEL THICKNESS RANGE: 1.5mm - 4.0mm CONTACT ARRANGEMENT: SPST, Off-(On) Momentary
