RP8200 Series Illuminated, Round Pushbutton Switch

RP8200 Series Illuminated, Round Pushbutton Switch

  • Sealed pushbutton with IP67 rated dust and moisture protection
  • Threaded mount
  • 200,000-cycle life expectancy
  • Electrical Rating: 100mA @ 24VDC
  • LED illumination options
  • SPST; maintained (latching) pushbuttons
  • Travel: 2.5mm
  • Operating Temperature: -30°C to 85°C

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

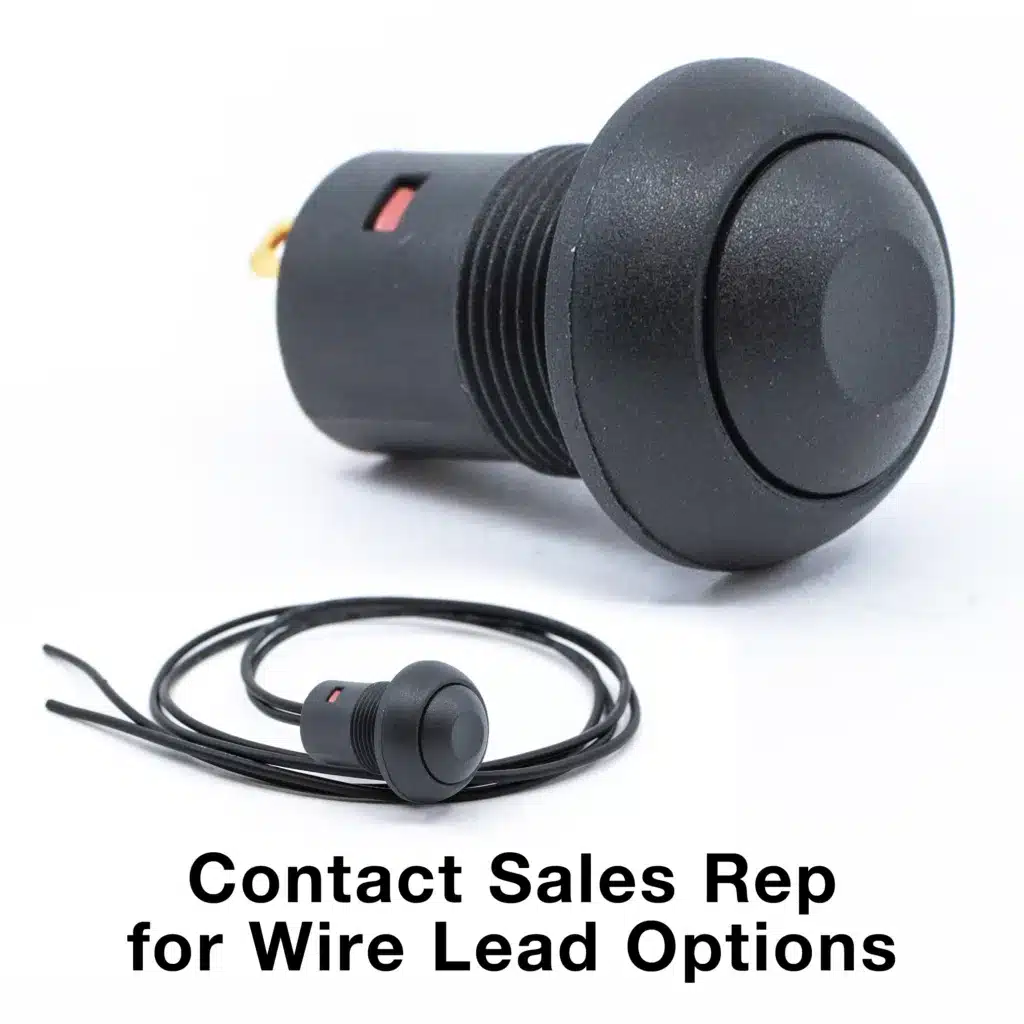

Rp8200 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

  • ELECTRICAL RATING: 100mA @ 24VDC
  • LIFE EXPECTANCY: 200,000 Cycles at Full Load
  • CONTACT RESISTANCE: 50mΩ Max. (Initial)
  • INSULATION RESISTANCE: 1,000MΩ Min. at 500VDC
  • DIELECTRIC STRENGTH: 1,000VAC for 1 Minute
  • OPERATING FORCE: 350gf
  • OPERATING/STORAGE TEMPERATURE: -30°C to 85°C
  • TRAVEL: 2.5mm
  • DUST/MOISTURE PROTECTION: IP67
  • PANEL THICKNESS RANGE: 1.5mm - 4.0mm
  • CONTACT ARRANGEMENT: SPST, Off-On, Latching
