RB2 Series High Current, Power Rocker Switch

RB2 Series High Current, Power Rocker Switch

The RB2 Series illuminated, power rocker switch has an optional silicone cap for dust and water protection that provides ingress protection at an IP54 rating. This high current, power rocker switch offers both illuminated and non-illuminated versions, coming fully illuminated, dot illuminated, or signal light illuminated. The RB2 high current rocker switch is meant for a 22mm x 30mm panel cutout and carries an electrical rating of 20A, 125VAC 1/4 HP T65 with [cURus] approval. The actuator on these custom rocker switches can be curved or flat, and comes with 1- or 2-pole circuits or 2-pole only circuits. Applications for this high current, power rocker switch include:

  • Commercial appliances
  • Industrial controls
  • Floor care appliances
  • Instrumentation
  • Medical/dental
  • Electrical housewares


  • 20A, 125VAC, 1/4HP electrical rating with cURus certification
  • IP54 rated protection from dust and moisture with optional cap
  • Full, dot, or signal light illumination options



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Rb2 Wire

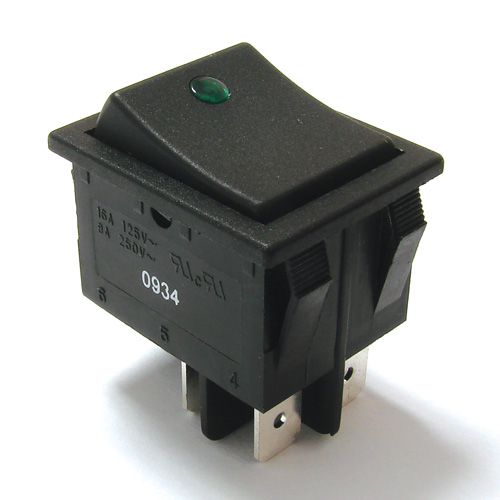

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

ELECTRICAL RATING: Option D (2 Pos. Functions): 20A @ 125VAC, T105 [cURus]; 16A @ 250VAC, T105 [cURus]; 3/4HP @ 125VAC, T105 [cURus]; 3/4HP @ 250VAC, T105 [cURus]; Option E (3 Pos. Funtions): 16A @ 125VAC, T65 [cURus]; 16A @ 250VAC, T65 [cURus] OPERATING/STORAGE TEMPERATURE: -20°C to 65°C ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 35mΩ Max. at 50VAC INSULATION RESISTANCE: 100MΩ Min. at 500VAC DIELECTRIC STRENGTH: 1,500VAC for 1 Minute DUST/MOISTURE PROTECTION: IP54 with Optional Silicone Cap
