R5 Series Illuminated, High Current Rocker Switch

R5 Series Illuminated, High Current Rocker Switch

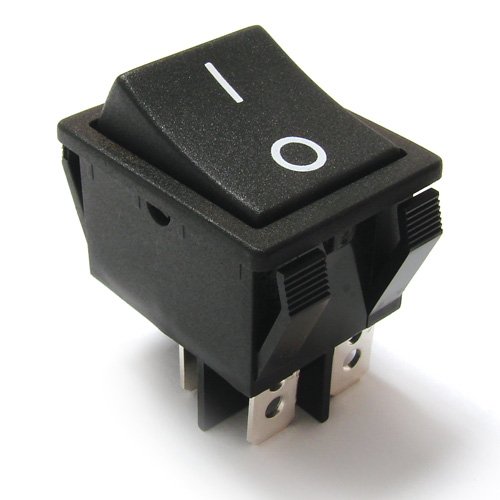

The R5 Series high current rocker switch is UL and VDE certified, and is available in both illuminated and non-illuminated versions featuring customizable, curved actuators. These custom rocker switches come with multiple color and marking options for the actuator. The LED rocker switch voltage is also customizable. The R5 Series illuminated, high current rocker switch is designed to snap into a panel cutout sized 22mm x 30mm. These LED rocker switches feature Double Pole, Double Throw (DPDT) circuits and have horsepower ratings up to 1HP. These high current rocker switches have an electrical rating of 20A of 125VAC T65 with cURus agency, and 16A of 250VAC with VDE agency approval. Applications for this high current rocker switch include:

  • Industrial
  • Audio/visual
  • Lighting ballast

FEATURES

  • 20A, 125VAC with UL certification, 16A, 250VAC with VDE certification
  • 22mm x 30mm panel cutout
  • Full illumination or non-illuminated options and actuator marking options

R5 Series Illuminated, High Current Rocker Switch

decoration R5 Wire

Industry Utilization:

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

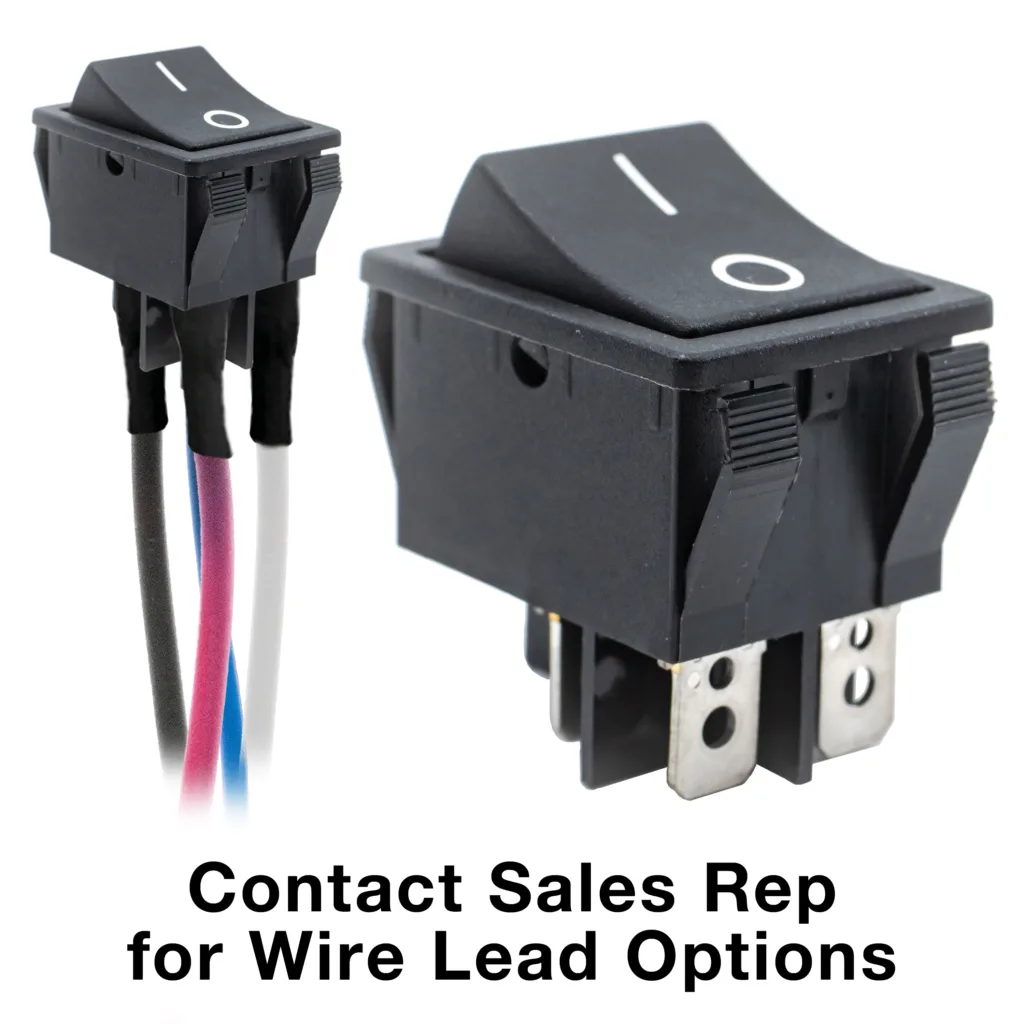

R5 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

ELECTRICAL RATING: Versions D, G, I: 10A @ 250VAC; 15A @ 125VAC; Versions A, B, C, E, F, H: 16A @ 250V, 1HP; 20A @ 125VAC, 3/4 HP MECHANICAL LIFE: 30,000 Cycles ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 20mΩ (Initial) INSULATION RESISTANCE: >1,000MΩ at 500VDC DIELECTRIC STRENGTH: >1,500V AC 1 Minute (Initial) OPERATING/STORAGE TEMPERATURE: -20°C to 55°C SAFETY STANDARD APPROVAL: UL, CSA
