R4 Series Illuminated, High Current Rocker Switch

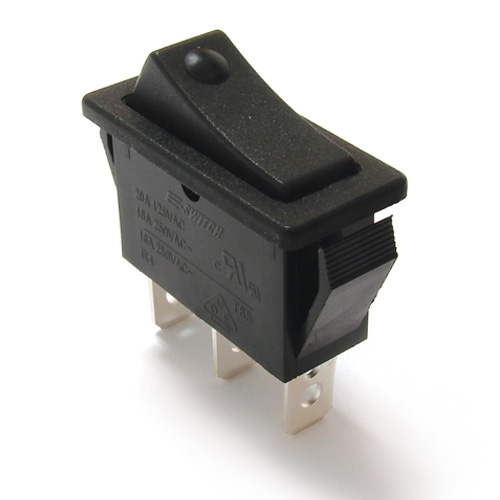

The R4 Series high current rocker switches are available in both illuminated and non-illuminated versions, with neon or LED lights. They are power rated and UL approved for 20A of 125VAC. The housing colors for this LED rocker switch are black or gray. The R4 Series LED rocker switch offers a fully illuminated, curved actuator or non-illuminated versions in black and red. Multiple marking options for the actuator make these custom rocker switches with single or double poile circuits completing maintained (latching) functions. The R4 Series high current rocker switch fits a panel cutout sized 11mm x 30mm. These custom rocker switches offer full illumination or dot illumination options at various voltages. Applications for this illuminated, high current rocker switch include:

  • Industrial
  • Audio/visual
  • Lighting ballast


  • 20A, 125VAC electrical rating
  • 11mm x 30mm panel cutout
  • Full or dot illumination options; also non-illuminated options

R4 Series Illuminated, High Current Rocker Switch

decoration R4 Series

Industry Utilization:



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

R4 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

ELECTRICAL RATING: Versions D, G, I: 10A @ 250V; 15A @ 125VAC; Versions A, B, C, E, F, H, J: 16A @ 250V; 20A @ 125VAC MECHANICAL LIFE: 30,000 Cycles ELECTRICAL LIFE: 6,000 Cycles CONTACT RESISTANCE: 20mΩ Max. Typical Initial at 2-4VDC INSULATION RESISTANCE: >1,000MΩ DIELECTRIC STRENGTH: >1,500V for 1 Minute Between Terminals OPERATING/STORAGE TEMPERATURE: -20°C to 55°C SAFETY STANDARD APPROVAL: UL
