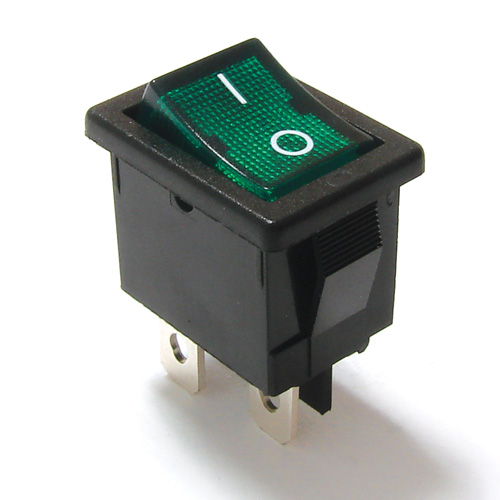

R1973 Series Illuminated Power Rocker Switch

R1973 Series Illuminated Power Rocker Switch

The R1973 Series illuminated power rocker switches are UL and VDE certified, and are available with a variety of colored housings, actuators, and LEDs. The panel cutout size is an industry standard 13mm x 19.2mm rectangle. Full illumination options are available for this LED rocker switch, and termination options include faston and right-angle PCB pin. The R1973 Series illuminated power rocker switch carries an electrical rating of 9A of 125VAC T65 with a cURus agency approval, and 6A @ 250VAC with VDE approval. This LED rocker switch has a curved actuator available in many colors. Single or double pole circuits can complete maintained (latching) functions. Actuator markings are also available, making these custom rocker switches. Applications for this illuminated power rocker switch include, but are not limited to:

  • Audio/Visual
  • Consumer Electronics
  • Test/Instrumentation

FEATURES

  • 9A, 125VAC electrical rating with UL certification; 6A, 250VAC with VDE certification
  • 13mm x 19.2mm panel cutout
  • Full illumination options and actuator marking options
  • 1 or 2 pole circuits; maintained (latching) functions

R1973 Series Illuminated Power Rocker Switch

decoration R1973 Wire

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

R1973 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

R1973BBLKBLKFF0

Detail Specifications

ELECTRICAL RATING: 9A @ 125VAC [cURus]; 6A @ 250VAC [cURus] [VDE] MECHANICAL LIFE: 30,000 Cycles ELECTRICAL LIFE: 10,000 Cycles CONTACT RESISTANCE: 20mΩ Max. Typical, Initial INSULATION RESISTANCE: >1,000MΩ DIELECTRIC STRENGTH: >1,500V for 1 Minute; >3000V Between Poles OPERATING/STORAGE TEMPERATURE: -30°C to 85°C
