PZ Series Anti-Vandal, Illuminated Piezo Switch

PZ Series Anti-Vandal, Illuminated Piezo Switch

The PZ Series is an anti-vandal, illuminated piezo switch with momentary pulse function and 50 million cycles of electrical life. This piezo switch is available in three sizes: PZ3 (16mm diameter panel cutout), PZ4 (19mm) and PZ7 (22mm). The PZ3 requires 8mm Max. panel thickness; the PZ4 and PZ7 require 10mm Max. panel thickness.

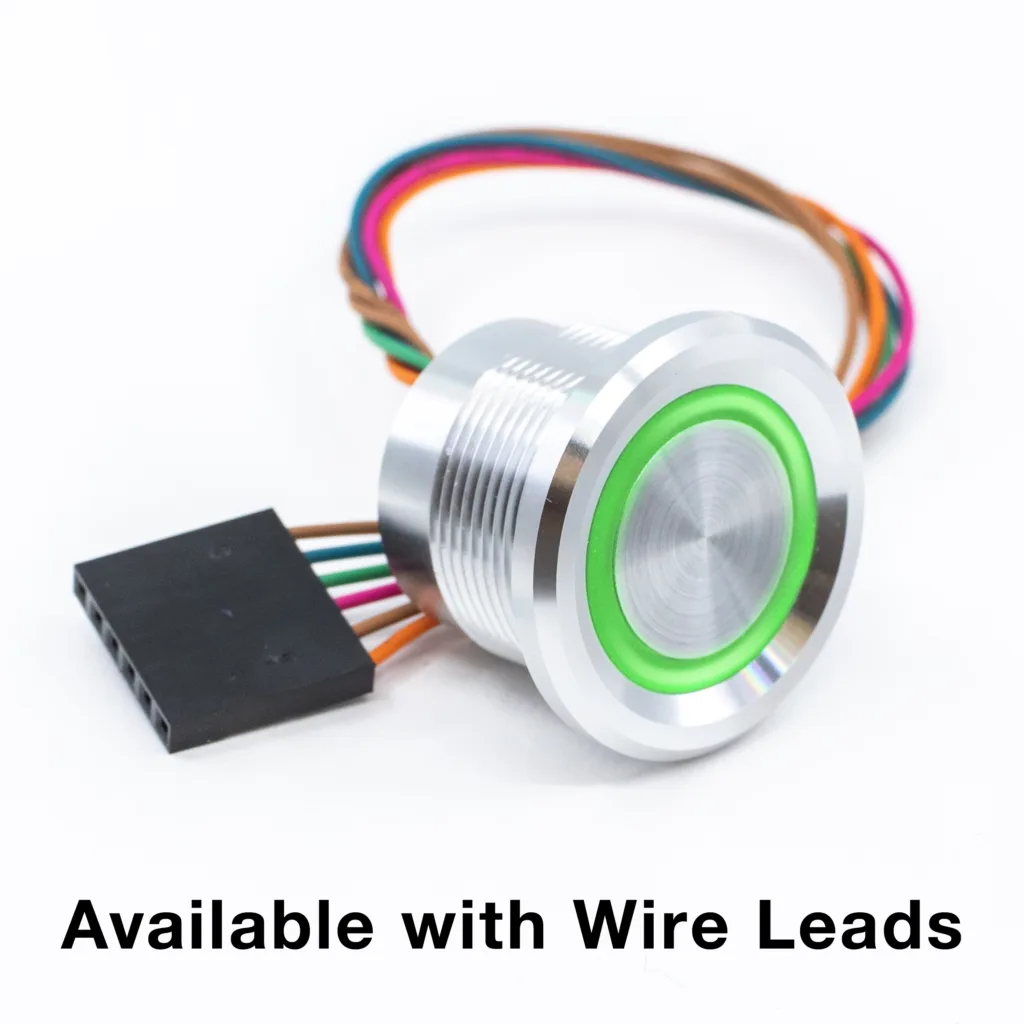

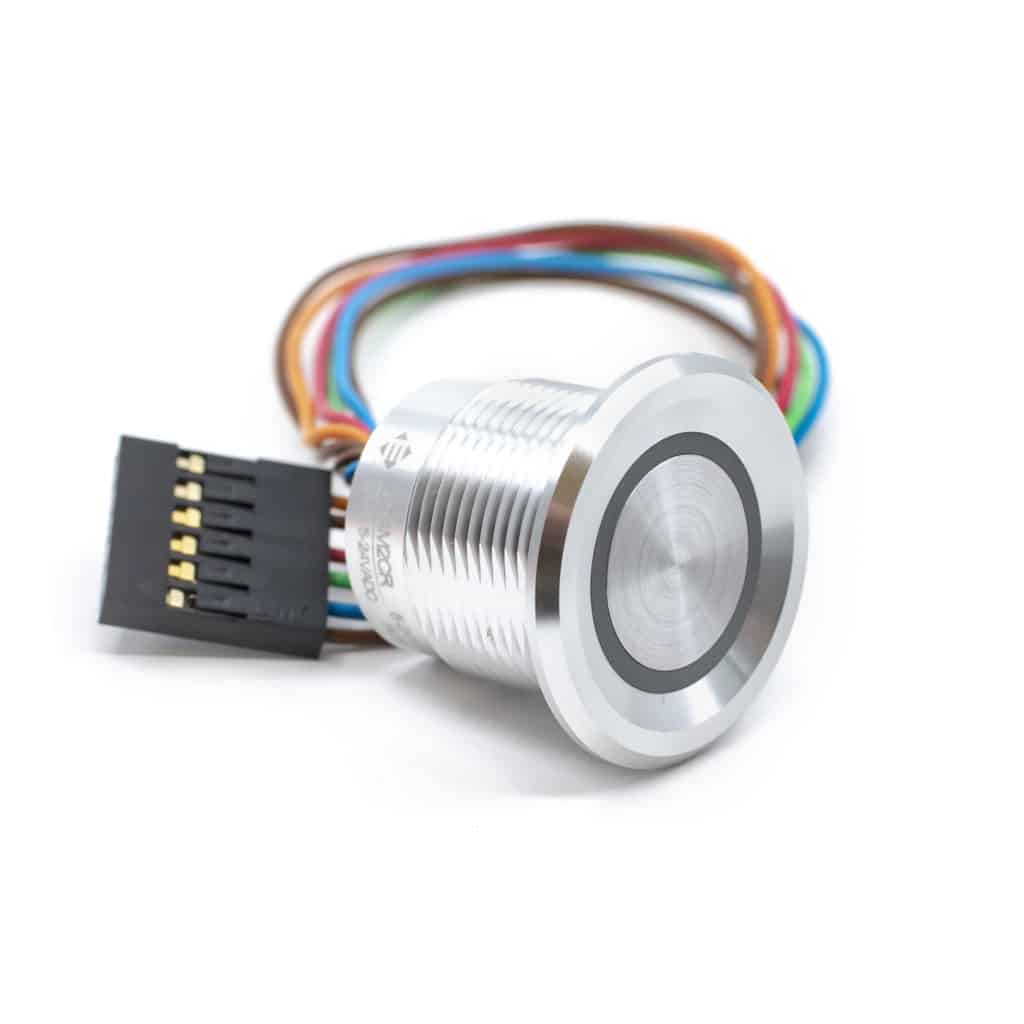

PZ Series anti-vandal piezo switches are offered as non-illuminated or with ring pattern illumination and LED RGB. Options include black or clear anodized housing finish, concave or flat bezel option and standard wire lead termination with 150mm or 300mm length leads.

The electrical rating on this illuminated piezo switch is 1A of 5-24VDC with a contact resistance 1Ω Max. This anti-vandal switch operates in temperatures ranging from -20⁰C to 65⁰C and can be stored at temperatures between -25⁰C to 65⁰C.

The PZ series anti-vandal, piezo switches are suitable for applications including:

  • Audio/visual equipment
  • Electrical housewares
  • Security devices
  • Medical equipment
  • Industrial controls
  • Kiosks

FEATURES

  • 16mm, 19mm and 22mm panel cutout options
  • IP68 (in house tested)
  • Ring illumination options
  • RGB color options
  • Bezel options
  • Electrical life of 50 million cycles

PZ Series Anti-Vandal, Illuminated Piezo Switch

decoration Pz Wire

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Pz Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

CONTACT RATING: 1A @ 5-24VDC ELECTRICAL LIFE: 50,000,000 Cycles CONTACT RESISTENCE: 1Ω Max. OPERATING TEMPERATURE: -20°C to 65°C STORAGE TEMPERATURE: -25°C to 65°C PANEL THICKNESS: PZ3 - 8mm Max.; PZ4 & PZ7 - 10mm Max. DUST/MOISTURE PROTECTION: IP68 (in-house tested)
