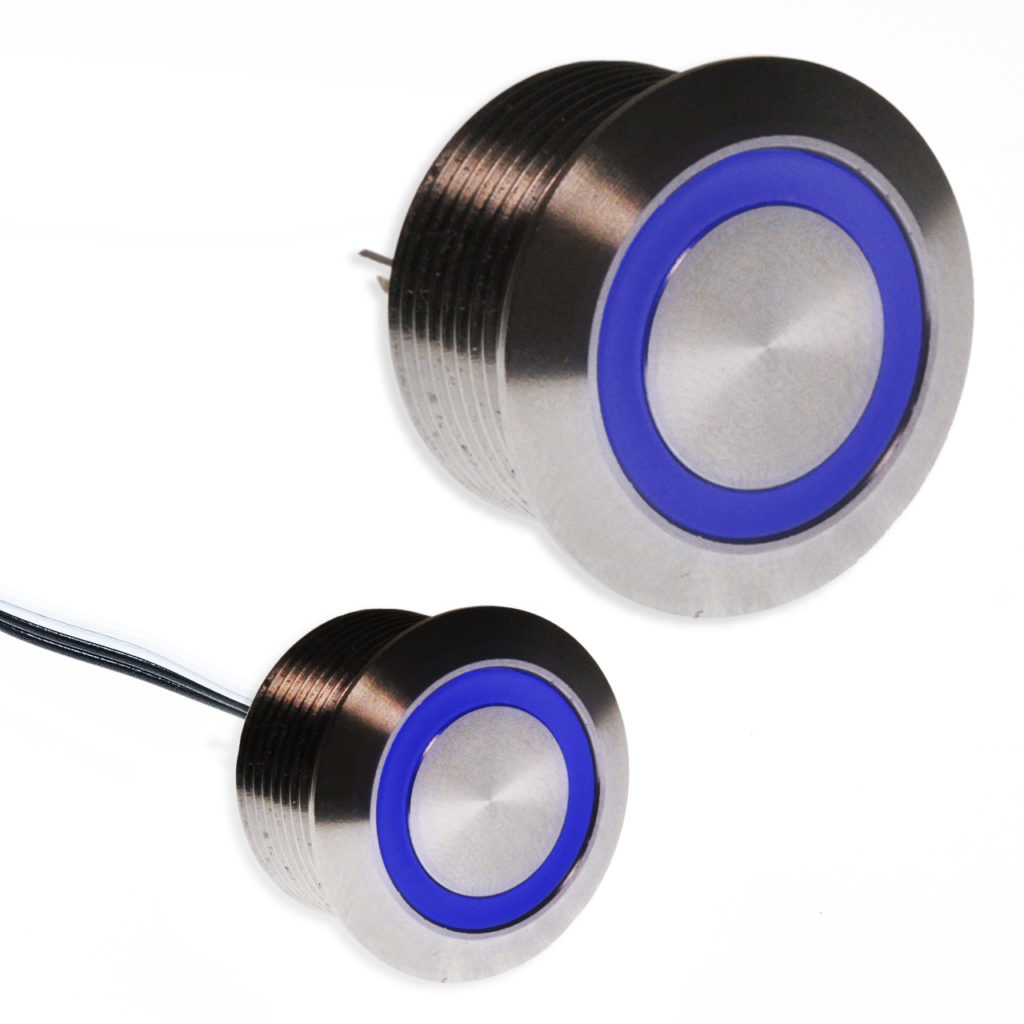

PVT4 Series Illuminated, Tactile Response Anti-Vandal Switch
PVT4 Series Illuminated, Tactile Response Anti-Vandal Switch
- IP65
- 19mm panel cutout
- 50mA, 24VDC
- Crisp tactile response; 0.5mm travel
- SPST circuit; momentary function

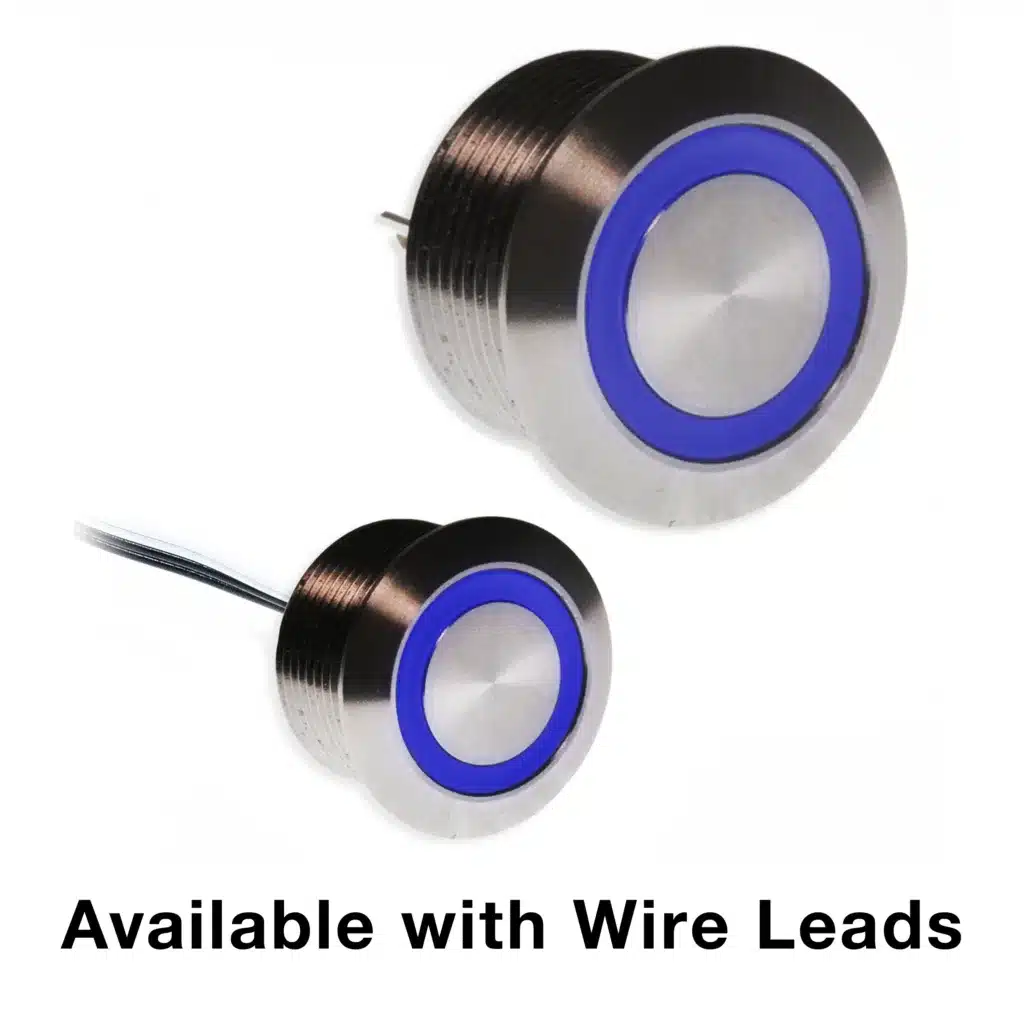

- Solder or wire leads 300mm long termination options
- Flat actuator
- Stainless steel finish
- Illuminated ring
- Many LED illumination color options
- Many illumination voltage options
- 500,000 cycles electrical life
- -25°C to 55°C operating temperature
PVT4 Series Illuminated, Tactile Response Anti-Vandal Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 24VDC
- ELECTRICAL LIFE: 500,000 Cycles
- CONTACT RESISTANCE: 50mΩ Max.
- INSULATION RESISTANCE: 1000 MΩ Min.
- DIELECTRIC STRENGTH: 250VAC
- OPERATING/STORAGE TEMPERATURE: -25°C to 55°C
- TRAVEL: 0.5mm
- DUST/MOISTURE PROTECTION: IP65
- CONTACT ARRANGEMENT: SPST Off-(On)
- ACTUATION FORCE: 490 grams
- PANEL THICKNESS: 1-5mm
- MOUNTING NUT TORQUE: 0.8Nm
