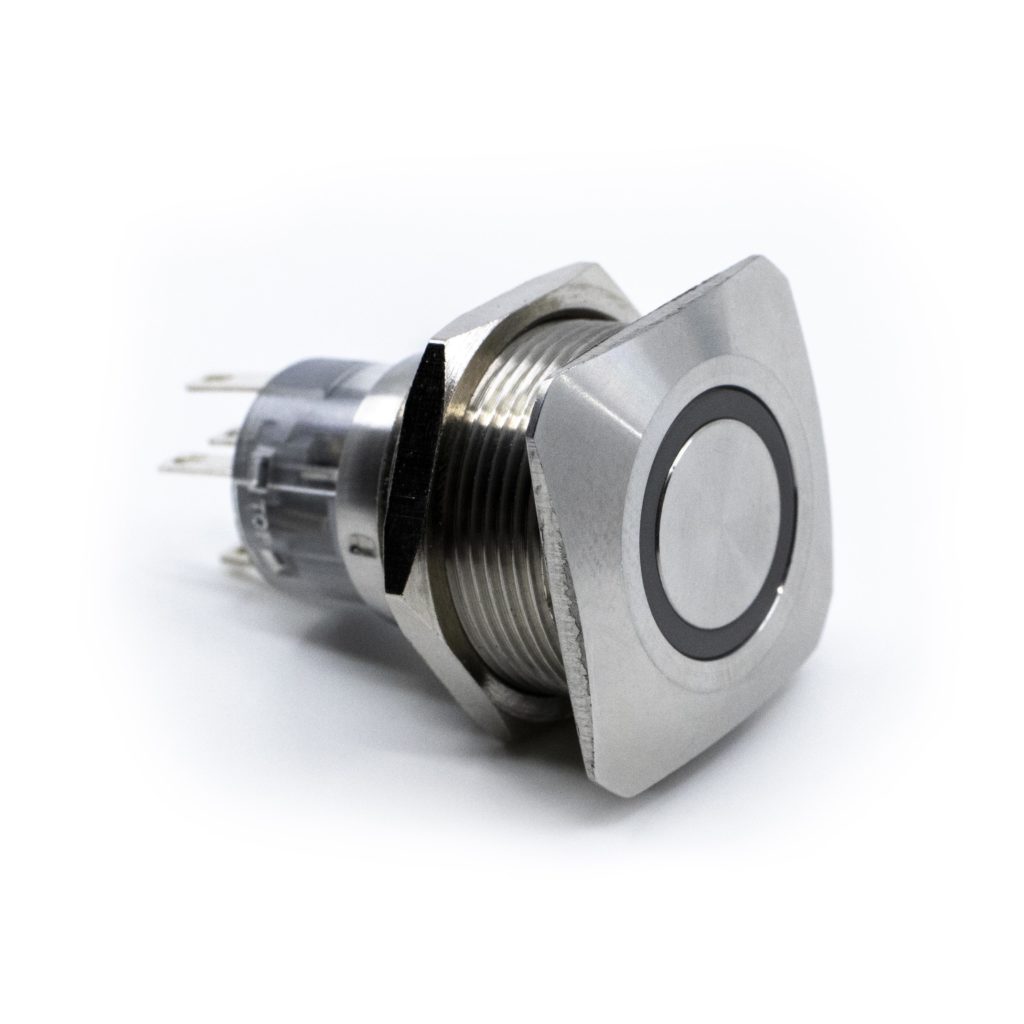

PVS7 Series Illuminated Anti-Vandal Switch
PVS7 Series Illuminated Anti-Vandal Switch
- IP65
- 22mm panel cutout
- 2A, 24VDC
- SPDT or DPDT circuit; latching or momentary function

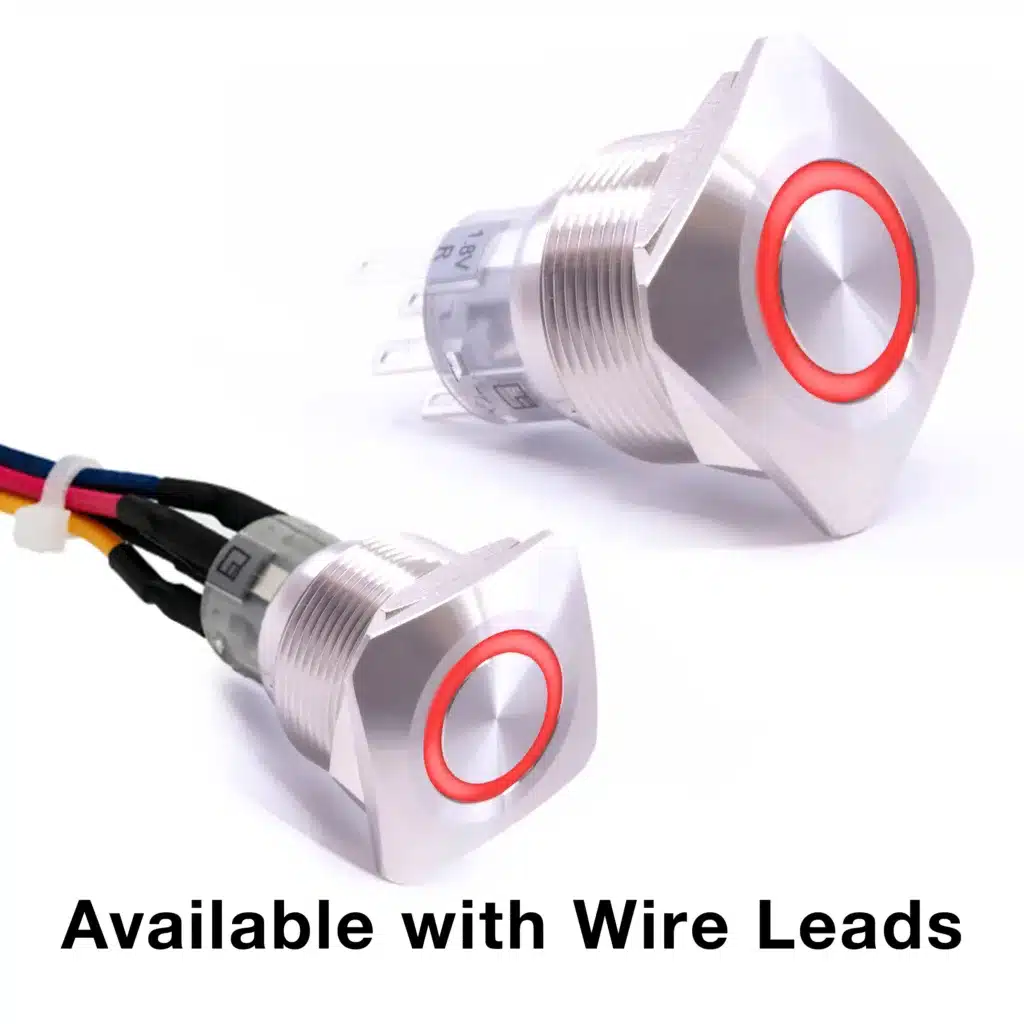

- Solder or wire leads 300mm long termination options
- Flat actuator
- Stainless steel finish
- Illuminated ring, or non-illuminated
- Many LED illumination color options including bi-color and RGB
- Many illumination voltage options
- Laser etched power symbol option
- 50,000 cycles electrical life
- -20°C to 55°C operating temperature
PVS7 Series Illuminated Anti-Vandal Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 2A @ 24VDC
- ELECTRICAL LIFE: 50,000 Cycles
- CONTACT RESISTANCE: 50mΩ Max.
- INSULATION RESISTANCE: 1000 MΩ Min.
- DIELECTRIC STRENGTH: 2,000VAC
- OPERATING/STORAGE TEMPERATURE: -20°C to 55°C
- TRAVEL: 2.50mm
- DUST/MOISTURE PROTECTION: IP65
- CONTACT ARRANGEMENT: SPDT, DPDT
- ACTUATION FORCE: 4 N
- PANEL THICKNESS: 1-11mm
- MOUNTING NUT TORQUE: 5-14Nm
