PVP Series Anti-vandal Switch Socket

Our PVP Series anti-vandal switch socket offers quick, efficient termination with new options for the PV series anti-vandal product line.The PV Series anti-vandal switches fit or plug into the PVP socket extension, allowing easier behind the panel termination. The PVP socket extension is available with solder lugs or can be direct wired. The socket extension with solder lugs is available for anti-vandal series PV3PV4, and PV7. Direct wired socket extensions are available for anti-vandal series PV3PV4PV7PV8PV9, and PV10. This option eliminates second sourcing, in-house labor, lead time, and overall cost. The PVP Series anti-vandal switch socket is ideal for applications like:

  • Security devices
  • Industrial controls
  • Kiosks
  • Audio/visual
  • Electrical housewares
  • Medical equipment

FEATURES

  • PVP3 both socket and wired socket are compatible with PV3 Series switches featuring SPDT, DPDT, non-illuminated, or LED illuminated color options.
  • PVP4 both socket and wired socket are compatible with PV4 series switches featuring SPDT, DPDT, non-illuminated, or LED illuminated color options.
  • PVP7 both socket and wired socket are compatible with PV7 series switches featuring SPDT, non-illuminated, or LED illuminated color options.
  • PVP8 wired socket is compatible with PV8, PV9 and PV10 series switches featuring SPDT, DPDT, non-illuminated, or LED illuminated color options.
  • 22 AWG AWM UL 1007 wire
  • Standard wire length 140.0mm [5.5 in]

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

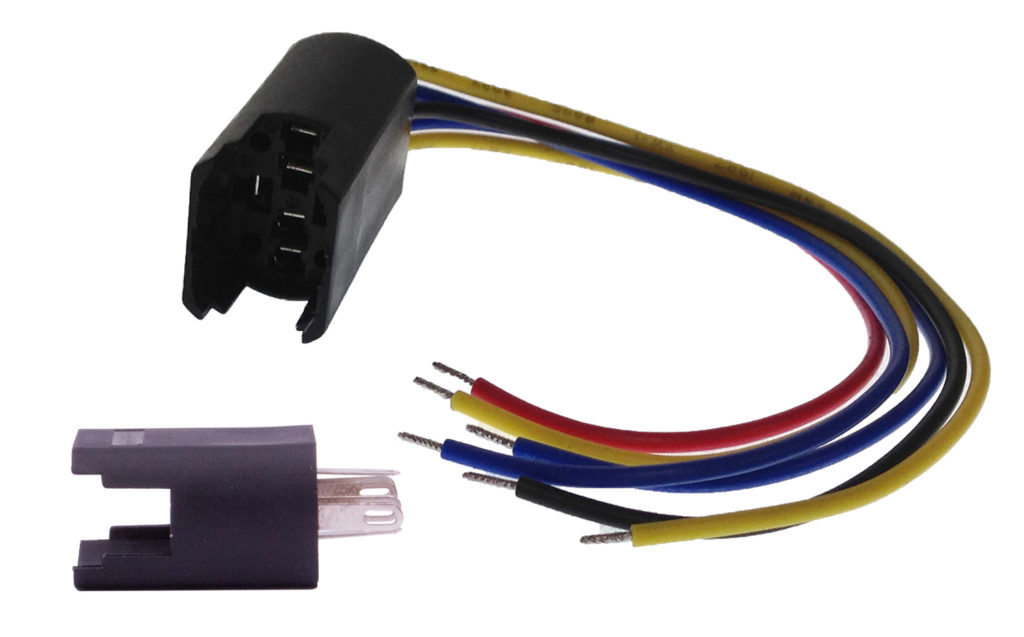

Rev 2 300dpi Pv7 Socket Socket W Wires Combo

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.
