PVK4 Series Illuminated Anti-vandal Switch

PVK4 Series Illuminated Anti-vandal Switch

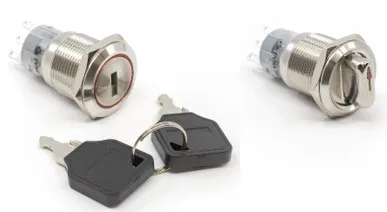

The PVK4 Series is an anti-vandal switch rated IP65 for dust and moisture protection with a keylock actuator option rated IP40. The switch features a stainless steel body and actuator finish meant for a panel cutout 19mm in diameter.

Multiple illumination colors and voltages are also available for the selector version of the switch, with arrow illumination in either white, red, orange, green, blue or yellow. Illumination voltages include 6V, 12V, 24V, 125V and 250V. Single-pole (SPDT) and double-pole (DPDT) circuits are available, offering two- or three-position, maintained or returned functionality. Silver or gold contacts are also available.

These illuminated anti-vandal switches operate in temperatures ranging from -20 to 55°C and have an electrical life expectancy of 50,000 cycles. Whether you choose selector or keylock actuators, these anti-vandal switches are a great choice for the following applications:

  • Audio/visual
  • Security devices
  • Industrial controls
  • Kiosks
  • Electrical housewares
  • Medical equipment

FEATURES

  • 19mm panel cutout
  • Keylock actuator option (IP40 rated for dust and moisture protection)
  • Selector actuator option, with illuminated arrow (IP65 rated for dust and moisture protection)
  • Up to three operating positions; SPDT or DPDT

PVK4 Series Illuminated Anti-vandal Switch

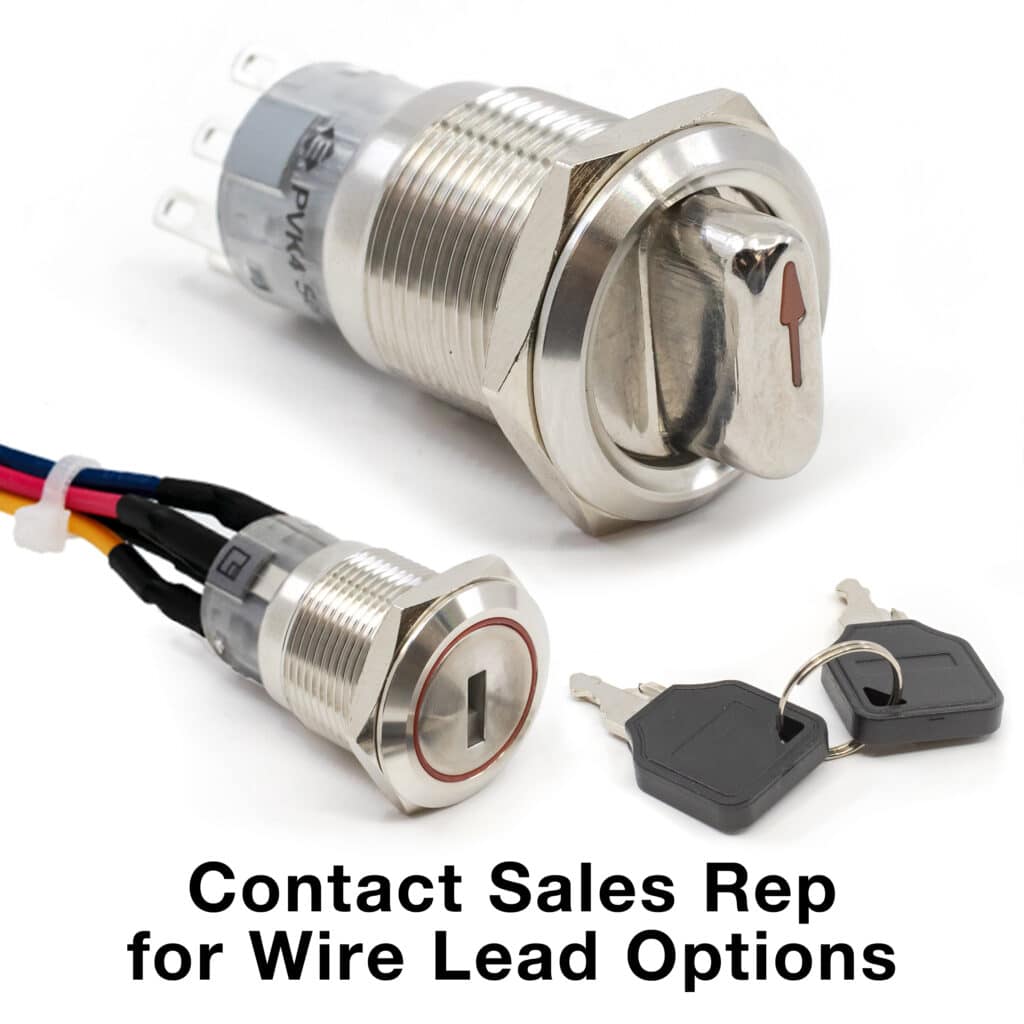

decoration Pvk4 Wire

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Pvk4 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 2A @ 24VDC ELECTRICAL LIFE: 50,000 Cycles CONTACT RESISTANCE: 50mΩ Max. INSULATION RESISTANCE: 1000 MΩ Min. @ 500VDC DIELECTRIC STRENGTH: 1,500VAC OPERATING/STORAGE TEMPERATURE: -20°C to 55°C DUST/MOISTURE PROTECTION: IP40 (return); IP65 (maintain) CONTACT ARRANGEMENT: SPDT, DPDT MAX. PANEL THICKNESS: 10mm MOUNTING NUT TORQUE: 0.8Nm
