PVHC4 Series Anti-Vandal Switch

PVHC4 Series Anti-Vandal Switch

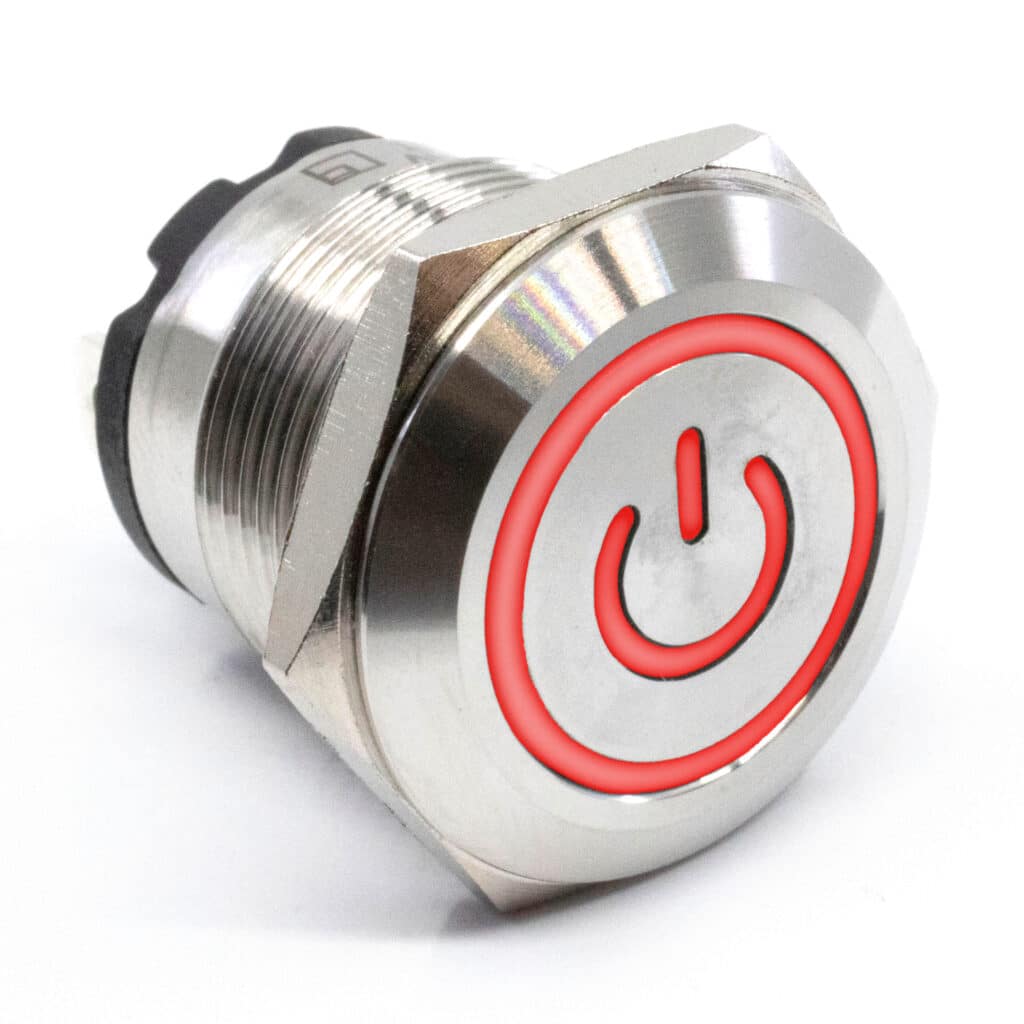

The PVHC4 Series anti-vandal switch provides durability and security in a sleek and modern package (19mm diameter panel cutout). Dependability meets visual appeal with an IP67 rating, multiple function options and the potential for ring or power symbol illumination. Multiple LED color choices are available for further customization. The electrical rating of this high-current SPST switch is 20A, 250VAC and 25A, 30VDC.

The PVHC4 has options for a flat or high actuator featuring either a stainless steel or black anodized finish. The body finish can also be stainless steel or black anodized. The electrical life is an impressive 50,000 cycles, and the switch has an operating/storage temperature of -40°C to 85°C.

FEATURES

  • 19mm diameter panel cutout
  • Electrical Rating: 20A, 250VAC; 25A, 30VDC
  • LED option
  • Ring or power symbol illumination available
  • Multiple function options
  • IP67 rated
  • SPST

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

High current switch: Pvhc4

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

Electrical Rating: 20A, 250VAC; 25A, 30VDC Electrical Life: 50,000 Cycles Contact Resistance: 100mΩ Max. Insulation Resistance: 100MΩ @ 500VDC Dielectric Strength: 1,500VAC Operating/Storage Temperature: -40°C to 85°C Travel: 3.50mm Moisture Protection: IP67 Contact Arrangement: SPST Actuation Force: 6 N Panel Thickness: 1-6mm Mounting Nut Torque: 0.6Nm
