PV9 Series Sealed, Illuminated Anti-vandal Switch

PV9 Series Sealed, Illuminated Anti-vandal Switch

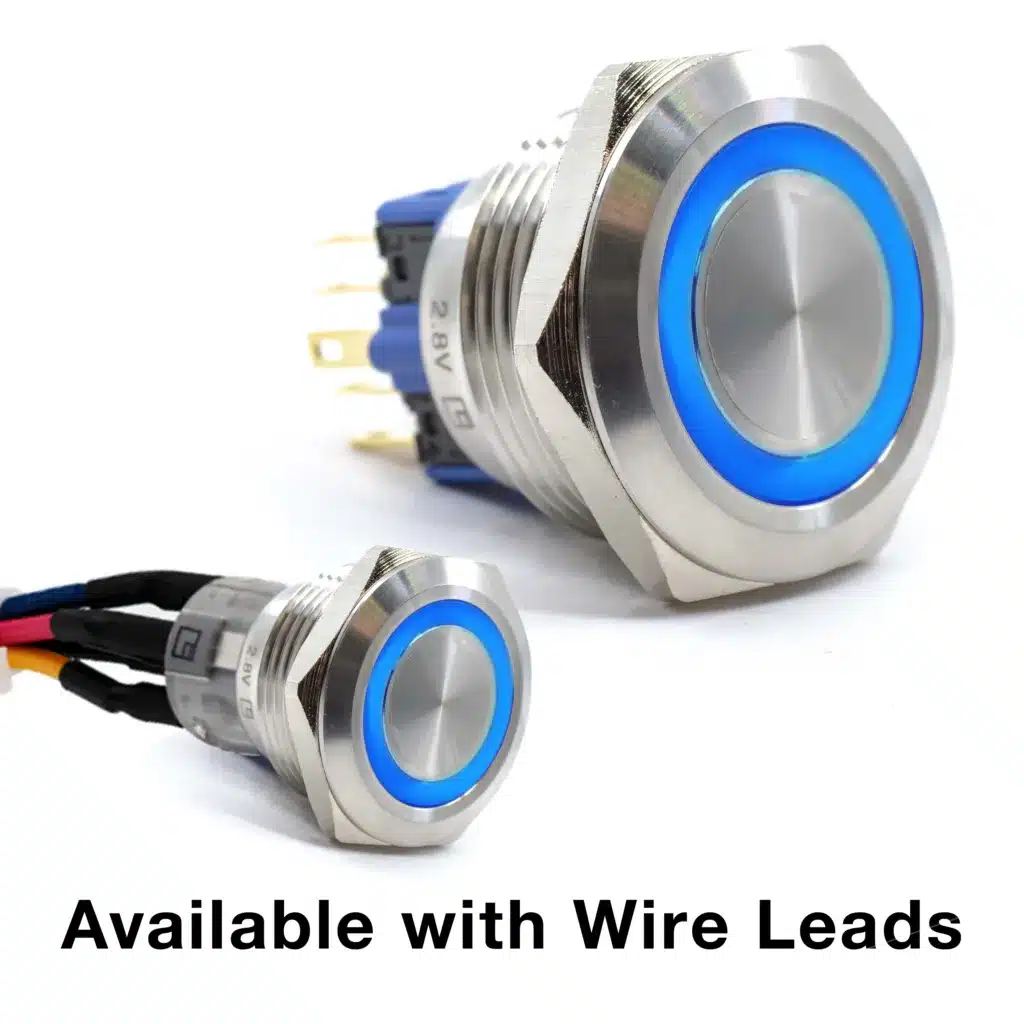

The PV9 Series illuminated anti-vandal switches feature a long life expectancy of a million mechanical cycles and are water resistant to an IP66 rating. LED illumination colors include red, yellow, orange, blue, green, and white, as well as combination colors (see the configurator below). The PV9 Series anti-vandal switch is available with dot or ring illumination with multiple voltage options and requires a 28mm panel cutout size. Soldered wire leads are also available in a 300 mm length. Applications for this switch include:

  • Audio/visual devices
  • Security devices
  • Electrical housewares
  • Industrial controls
  • Medical equipment
  • Kiosks and ticket dispensers or other designs that require vandal resistance

FEATURES

  • IP66 rated for dust and moisture protection
  • Dot or ring illumination options available
  • Multiple switch functions available
  • SPDT or DPDT

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Web Pv9 Text

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 2A @ 48VDC MECHANICAL LIFE: 1,000,000 Cycles ELECTRICAL LIFE: 50,000 Cycles CONTACT RESISTANCE: 50mΩ Max. INSULATION RESISTANCE: 1000 MΩ Min. @ 500VDC DIELECTRIC STRENGTH: 2,000VAC OPERATING/STORAGE TEMPERATURE: -20°C to 55°C TRAVEL: 2.8mm DUST/MOISTURE PROTECTION: IP66 CONTACT ARRANGEMENT: SPDT or DPDT ACTUATION FORCE: 660 gf PANEL THICKNESS: 1-10mm HEX NUT TORQUE: 5-14Nm
