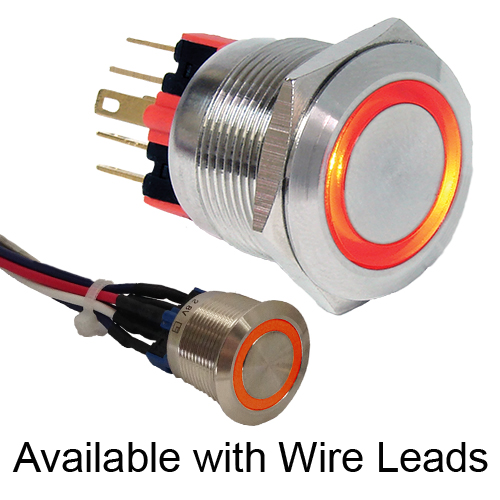

PV7 Series Illuminated, Sealed Anti-vandal Switch

PV7 Series Illuminated, Sealed Anti-vandal Switch

The PV7 Series sealed, anti-vandal switches feature a long life expectancy and are water resistant. LED illumination colors include red, yellow, orange, blue, green, white, bi-colors, and RGB LED options for an almost unlimited choice of illumination colors. The PV7 Series is available in dot or ring illumination with graphics options that include the power symbol etched or illuminated. Panel cutout size is 22mm. Applications for this anti-vandal pushbutton switch include:

  • Audio/visual devices
  • Security devices
  • Industrial controls
  • Kiosks
  • Electrical housewares
  • Medical equipment


  • 22mm diameter panel cutout
  • IP65 rated for dust and moisture protection
  • Dot or ring lens options
  • Multiple LED colors
  • 1 pole; double break function



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

PV7 Series Illuminated Anti-vandal Switch

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Detail Specifications

ELECTRICAL RATING: 2A @ 48VDC ILLUMINATION BASE RATING: Red, Yellow and Orange: 20mA @ 1.8V; Blue, Green and White: 20mA @ 2.8V OPERATING/STORAGE TEMPERATURE: -20°C to 55°C MECHANICAL LIFE: 1,000,000 Cycles ELECTRICAL LIFE: 50,000 Cycles CONTACT RESISTANCE: 50mΩ Max. INSULATION RESISTANCE: 1,000MΩ Min. DIELECTRIC STRENGTH: 2,000VAC DUST/MOISTURE PROTECTION: IP65 PANEL CUTOUT: 22mm Diameter / MATERIALS / BUSHING: Stainless Steel; Aluminum; Nickel ACTUATOR: Stainless Steel; Aluminum; Nickel; Polycarbonate BASE: Polyamide 6/6 SEALING: Silicone Rubber INNER ASSEMBLY: Polycarbonate; Polyoxymethylene; Stainless Steel; Brass SPRING: Stainless Steel CONTACT: Gold Plated Over Silver Alloy TERMINALS: Brass HARDWARE: Nickel Plated Brass
