PV5 Series Sealed, Long Life Anti-vandal Switch

PV5 Series Sealed, Long Life Anti-vandal Switch

The PV5 Series long life anti-vandal switch features an IP65 rating for protection against dust and moisture. It offers a domed actuator with multiple color options including black, white, yellow, blue, green, red, nickel, and stainless steel. Multiple actuator finish options are available, including a black anodized finish. The PV5 Series sealed anti-vandal switches have an electrical rating of 2A, 36VDC and have an electrical life expectancy of 200,000 cycles. These long life anti-vandal switches come with single-pole circuits and screw or solder lug termination options. They are meant for mounting in a panel cutout sized 12mm in diameter. This long life anti-vandal switch is popular for use in:

  • Kiosks and ticket dispensers
  • Industrial controls
  • Medical equipment
  • Electrical housewares
  • Audio/visual
  • Security devices
\

FEATURES

  • IP65 rated protection against dust and moisture
  • Solder lug or screw terminal options available
  • 1 pole; momentary pushbuttons

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

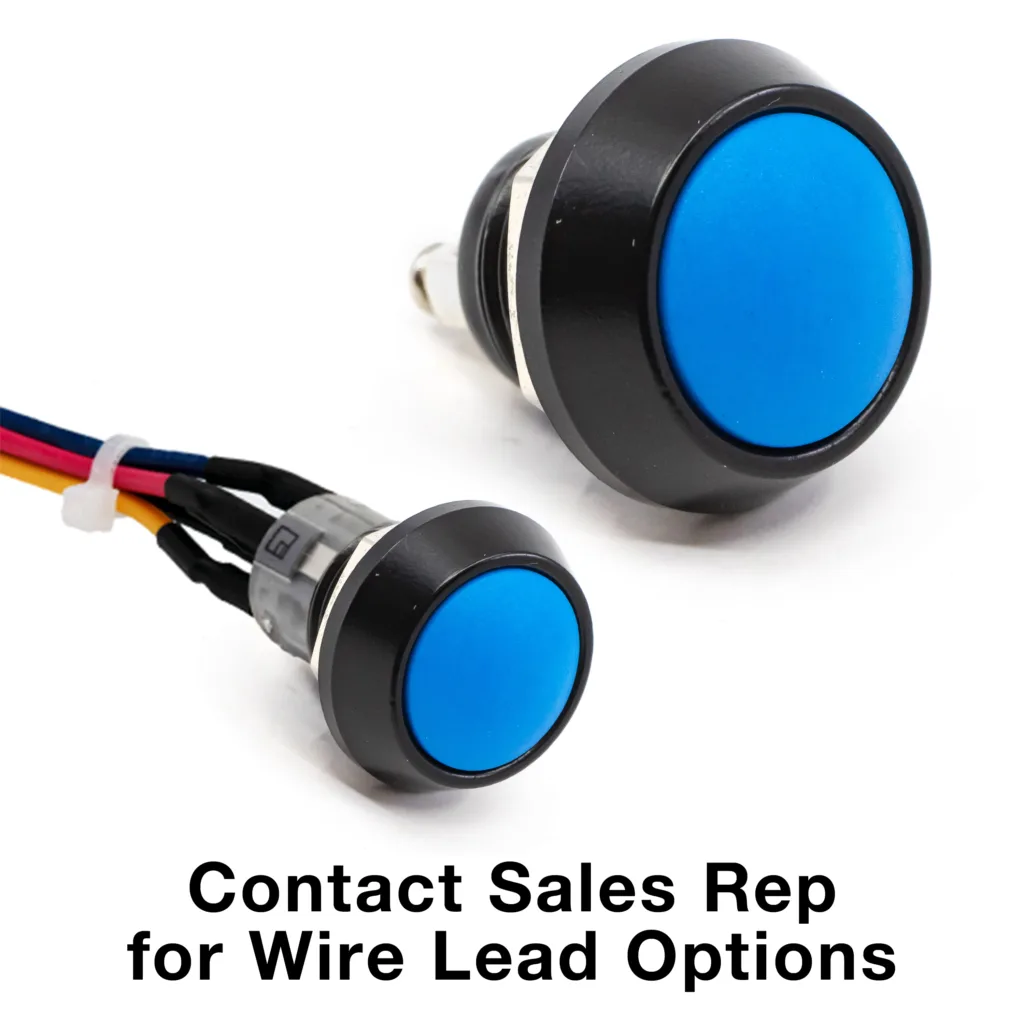

Pv5 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

PV5S24011
PV5S64011
PV5S64019

Detail Specifications

ELECTRICAL RATING: 2A @ 36VDC OPERATING/STORAGE TEMPERATURE: -25°C to 55°C ELECTRICAL LIFE: 200,000 Cycles MECHANICAL LIFE: 1,000,000 Cycles CONTACT RESISTANCE: 50mΩ Max. at 1A 12VDC INSULATION RESISTANCE 1,000MΩ Min. 500VDC DIELECTRIC STRENGTH: 2,000VAC for 1 Minute DUST/MOISTURE PROTECTION: IP65
