PV3 Series Illuminated Anti-Vandal Switch
PV3 Series Illuminated Anti-Vandal Switch
- IP67 or IP40; Long or short body
- 16mm panel cutout
- 2A, 48VDC
- SPDT or DPDT; momentary function

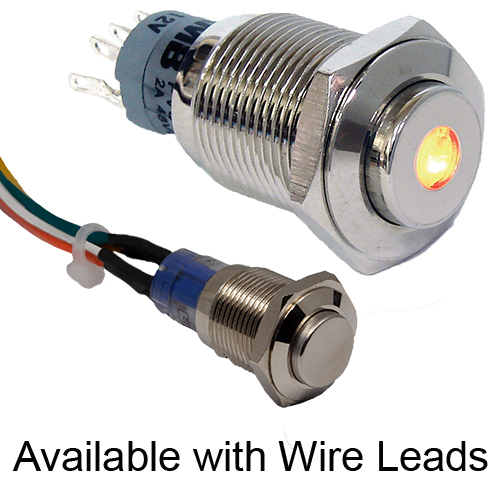

- Solder, or wire leads 300mm long termination options
- Guarded concave, high, or flat actuator options
- Nickel, polished stainless, brushed stainless, or black anodized body finish options
- Numerous actuator finish options
- Illuminated dot, illuminated ring, or non-illuminated options
- Many LED illumination color options
- Many illumination voltage options
- 50,000 cycles electrical life
- Silver or gold contact material
- -20°C to 55°C operating temperature
PV3 Series Illuminated Anti-Vandal Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRTICAL RATING: 2A @ 48VDC
- ILLUMINATION BASE RATING: Red, Yellow and Orange: 20mA @ 1.8V; Blue, Green and White: 20mA @ 2.8V
- OPERATING TEMPERATURE: -20°C to 55°C
- MECHANICAL LIFE: 200,000 Cycles
- ELECTRICAL LIFE: 50,000 Cycles
- CONTACT RESISTANCE: 50mΩ Max. at 1A 12VDC
- INSULATION RESISTANCE: 1,000MΩ Min.
- DIELECTRIC STRENGTH: 2,000VAC for 1 Minute
- DUST/MOISTURE PROTECTION: PV3, PV3S: IP40; PV3W, PV3SW: IP67
- PANEL CUTOUT: 16mm Diameter
